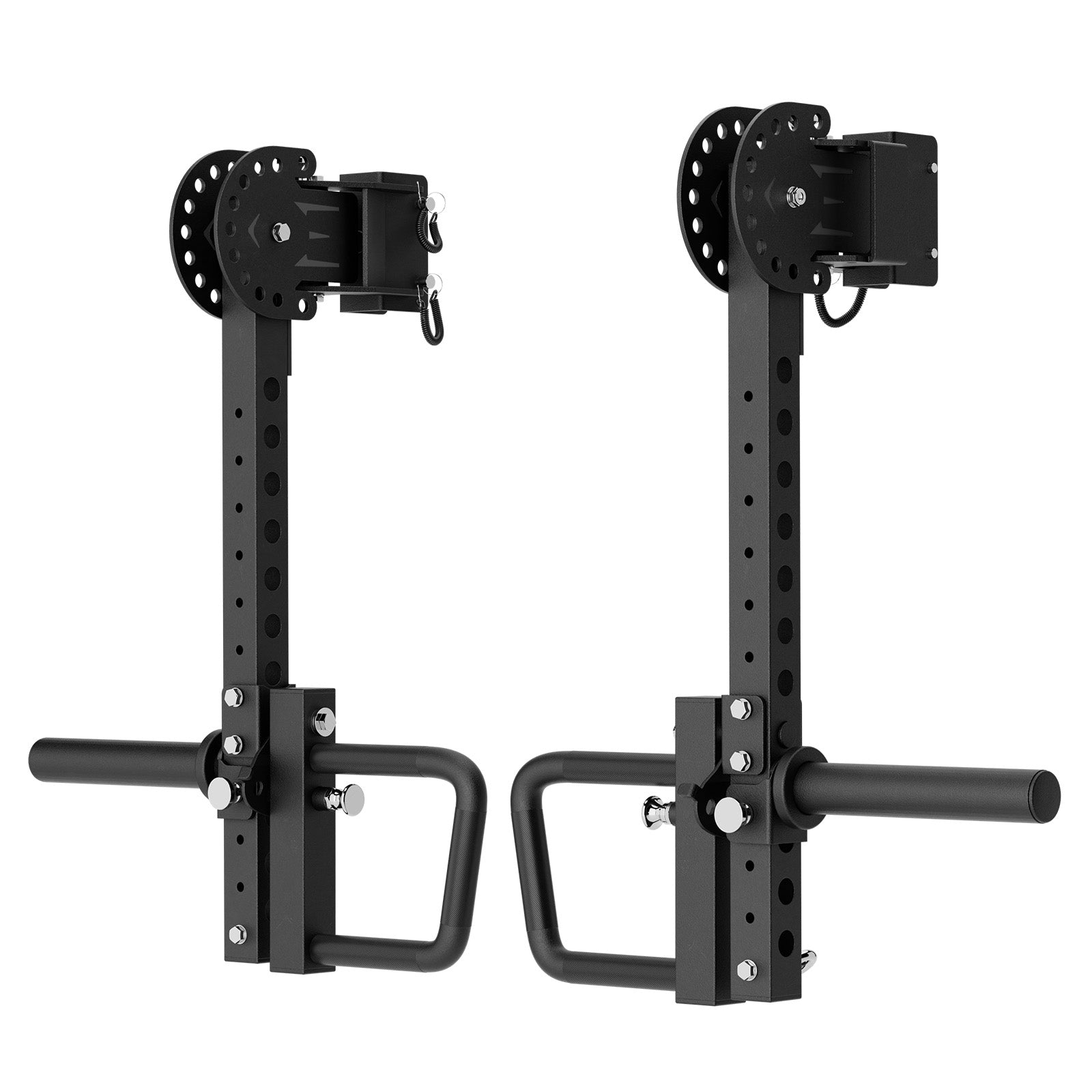

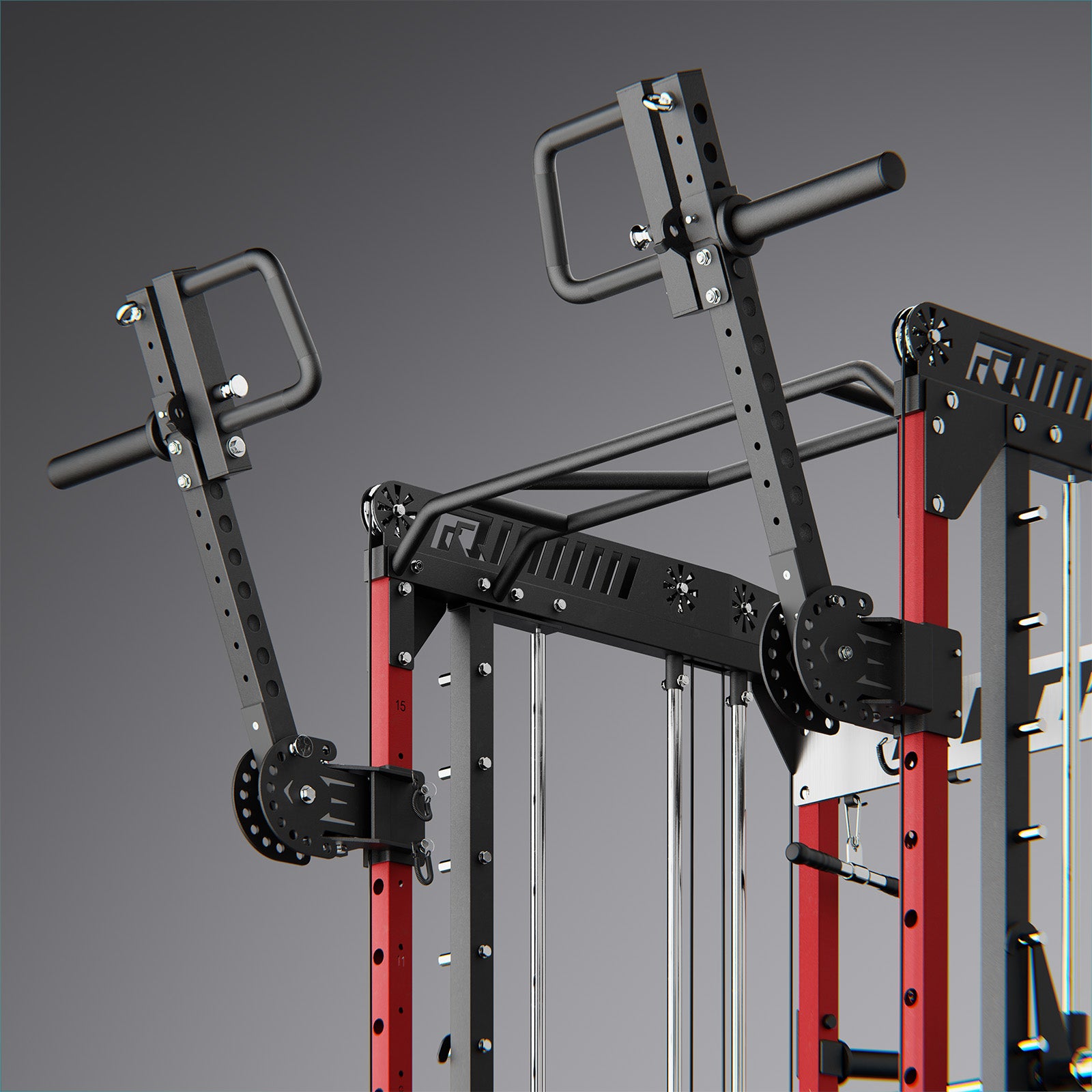

RitFit LAM1 Adjustable Lever Arm Attachment (Only for M1 PRO)

Pre-Order

RitFit LAM1 Adjustable Lever Arm Attachment (Only for M1 PRO)

Sale price$239.99

Attachment starts shipping after March 15th.
User Manual & Assembly Guide
Complete setup and usage guide with detailed assembly instructions
Download PDF

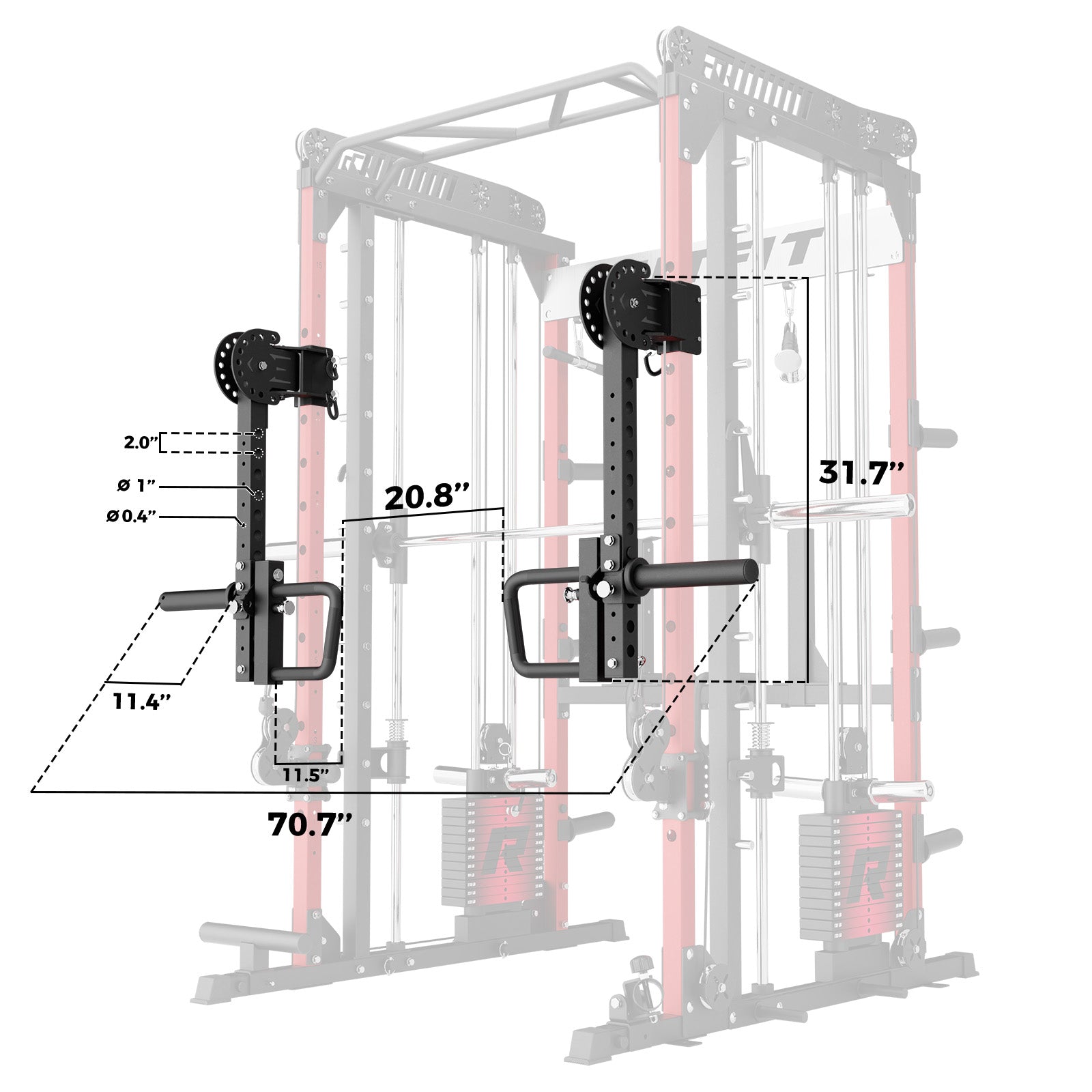

Product Dimensions

LAM1 GENERAL INFO

Product Name
LAM1 Adjustable Lever Arm Attachment
Product Model
LAM1
Overall Weight Capacity
260 lbs static load
Lever Arm Length
31.50 in
Weight Horn Length
10.51 in detachable weight horn

Suggested User Height
4 ft 9 in – 6 ft 5 in





Uprights & Frame

Steel Type
Q235 steel
Tube Spec
2 × 2 × 0.06 in
Wall Thickness
0.06 in

Plate Compatibility
Fits 2-inch Olympic plates





Adjustment & Safety

Adjustment Holes
12 positions
Dial Adjustment (Swivel)
9 positions
Handle Adjustment
5 positions, 15° per position
Weight Horn Capacity
130 lb per horn
Safety Features
Dual locking pins + anti-drop strap
Protective Details
Felt lining + protective pads
Adjustment Plate Thickness
Dial plate 0.20 in (5 mm); quick-release plate 0.24 in (6 mm)
LAM1

📦 Ships in 1 Box

🚚 Free Shipping (U.S. Continental)

⏱️ Attachment starts shipping after March 15th.

Box Dimensions (L×W×H) Weight
LAM1 35.24 × 19.69 × 4.92 in 72.75 lb

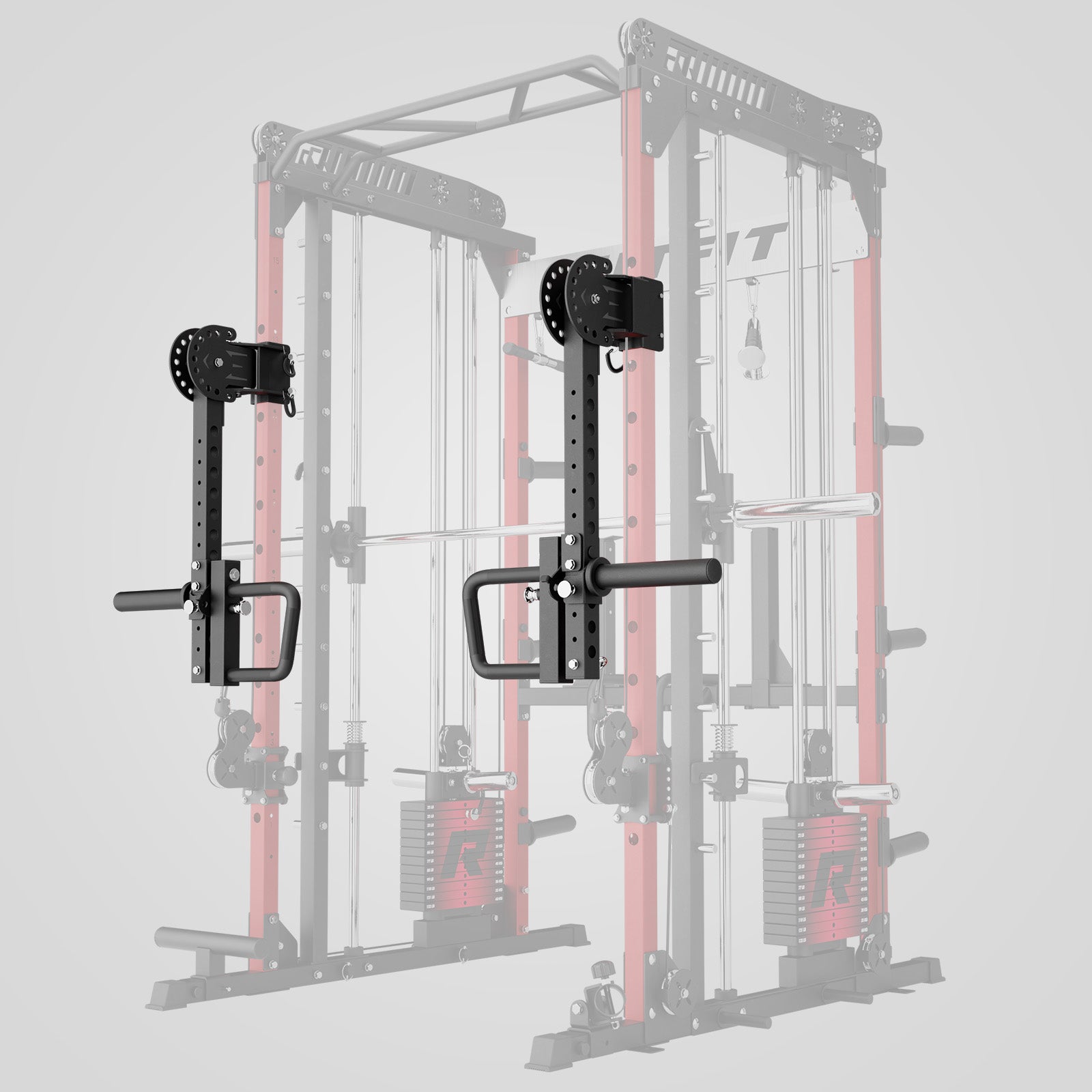

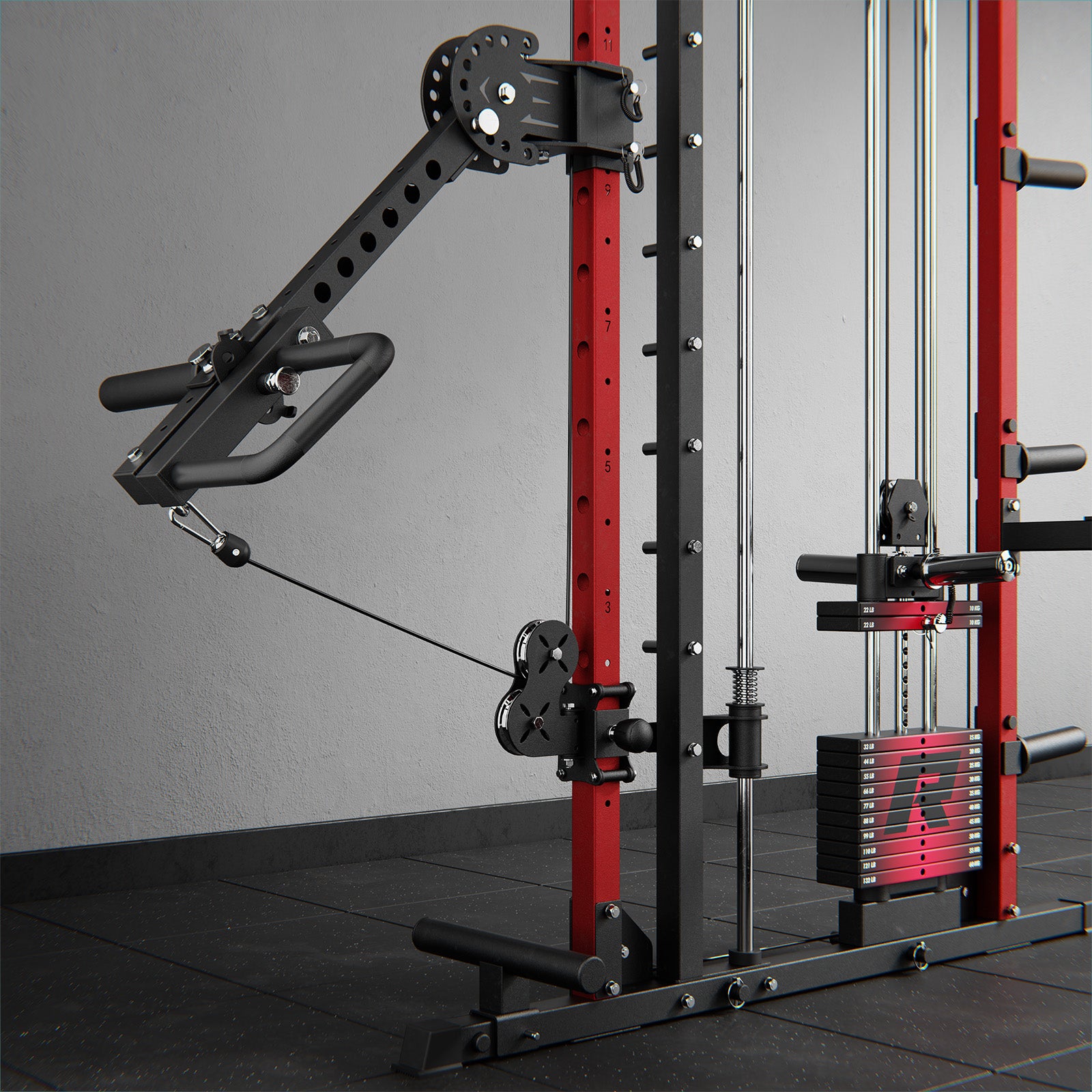

It’s a lever arm attachment for the RitFit M1 PRO that adds more press, row, and pull variations to your home gym.
It is specifically engineered for the RitFit M1 PRO system and compatible only with 2×2 inch rack uprights. Always ensure the attachment is fully seated and both locking pins are secured before loading weight.
It’s made for standard 2-inch Olympic plates.
The rated static load capacity is 260 lb.

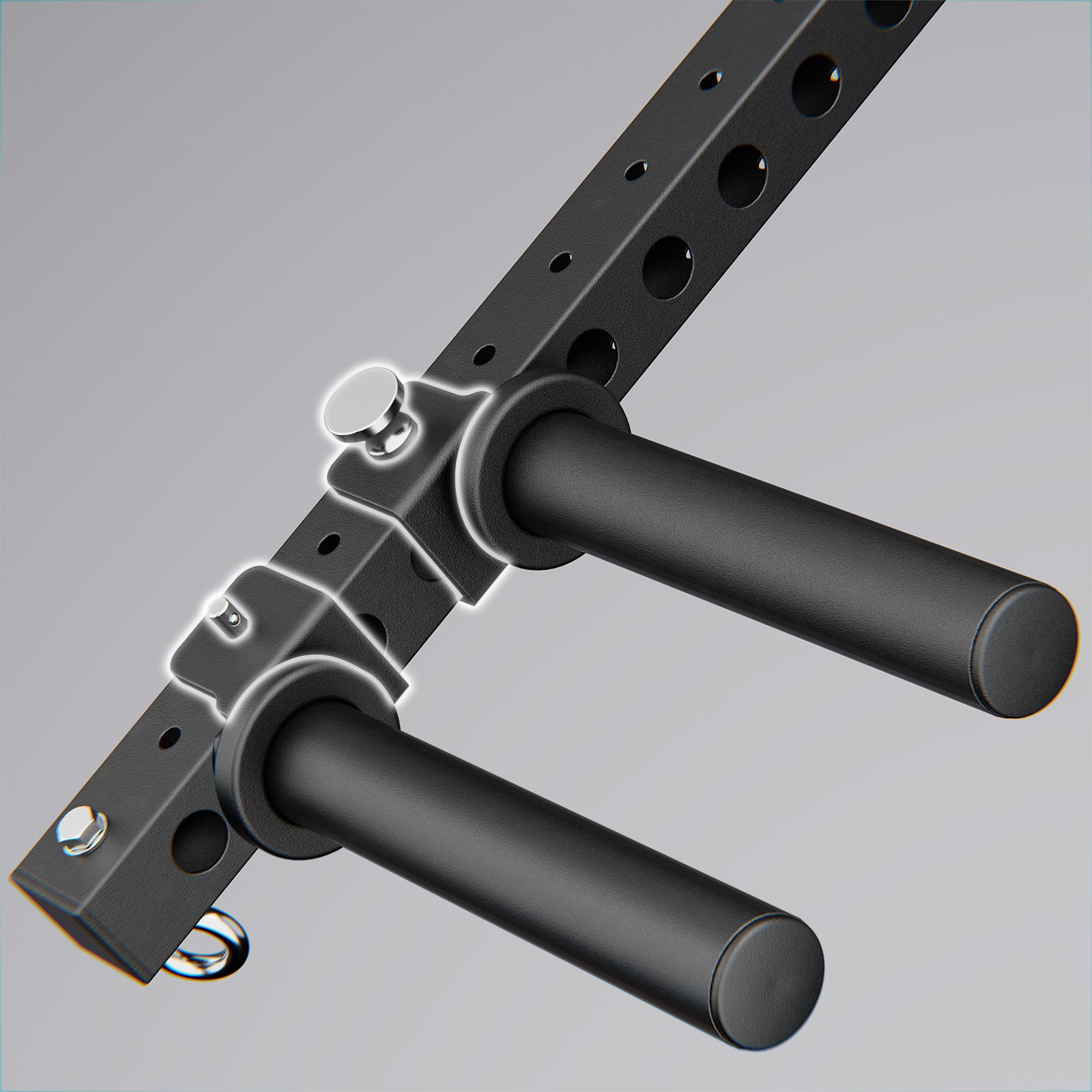

Each detachable weight horn supports up to 130 lb.

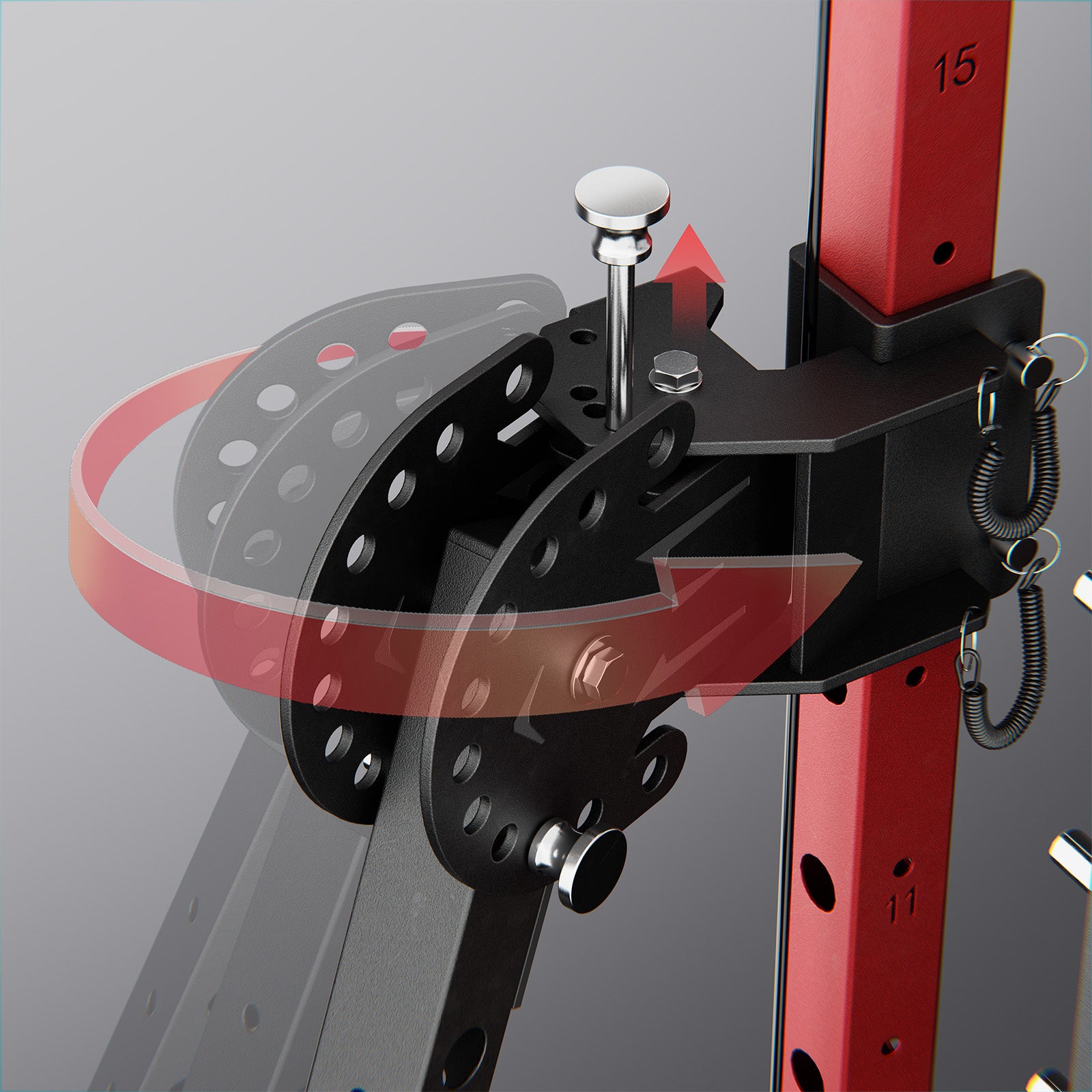

Use the 9-position adjustment dial to set the lever arm angle and range of motion.

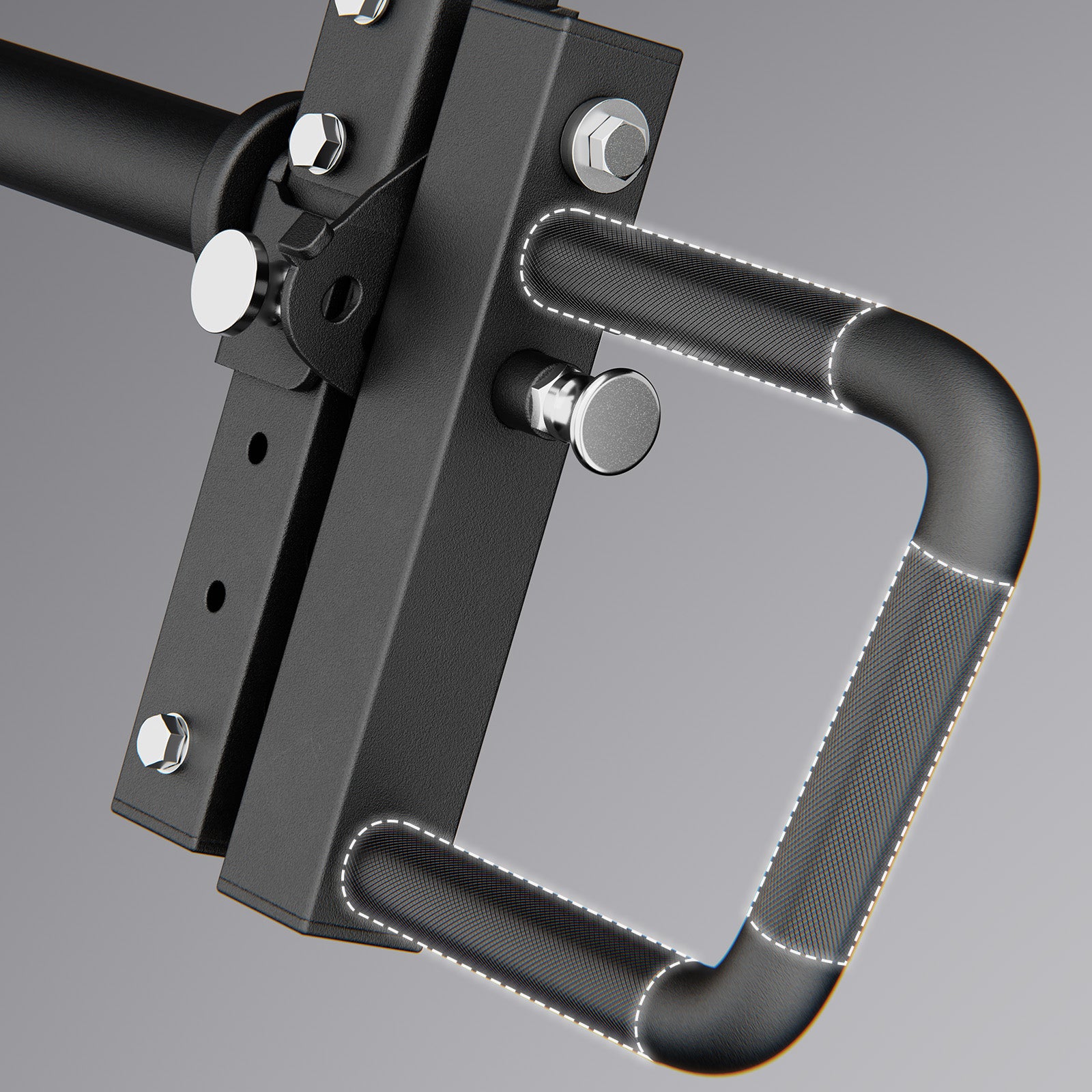

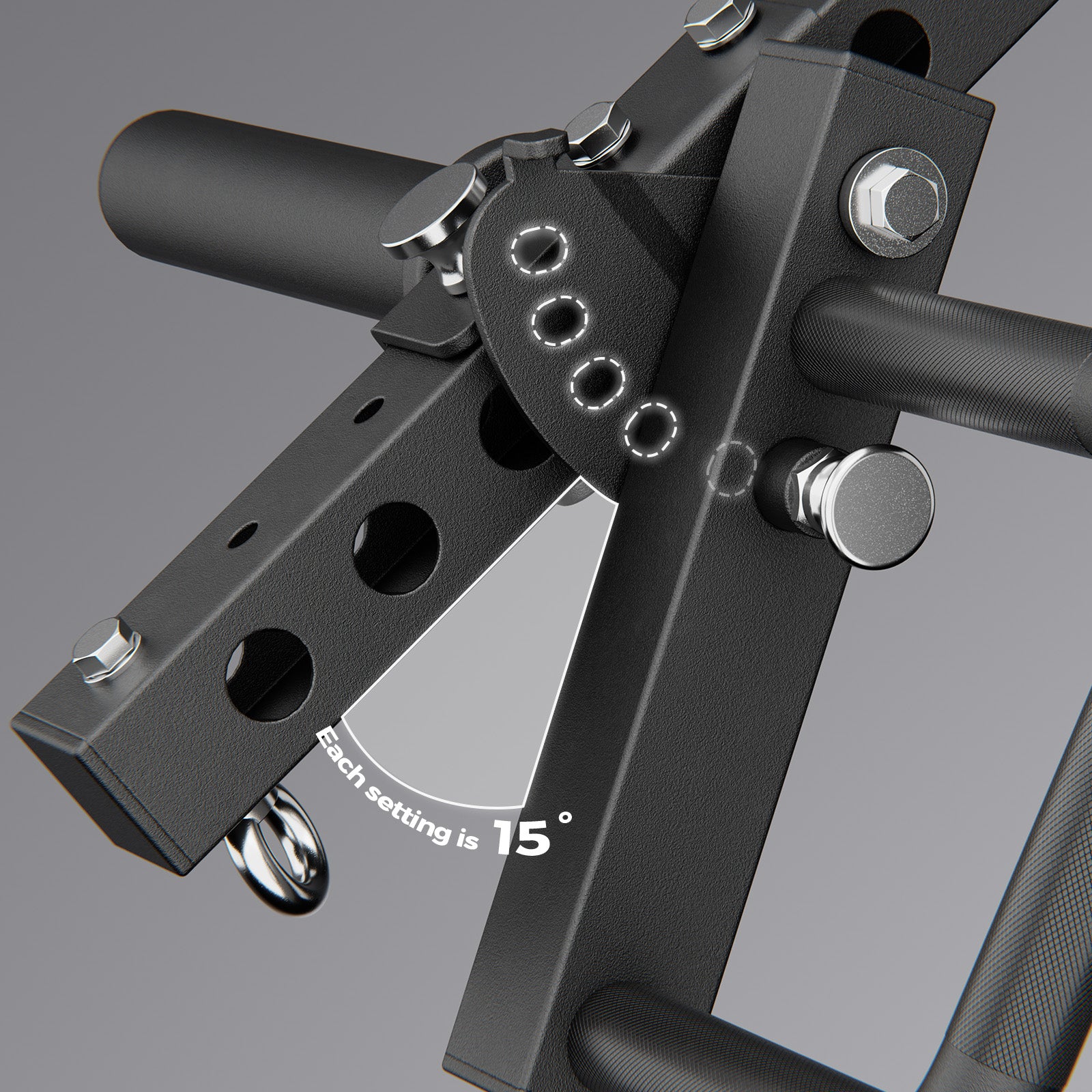

Yes. The handle features 5 adjustable positions, each spaced 15° apart, allowing you to fine-tune your grip for greater comfort and control.
Each lever arm is 31.5 in long. Since it mounts to your rack, space needs depend on your setup and exercise movement.
Felt lining, protective pads, and smooth washers help reduce metal-on-metal contact. Most noise comes from plates and your rack setup.

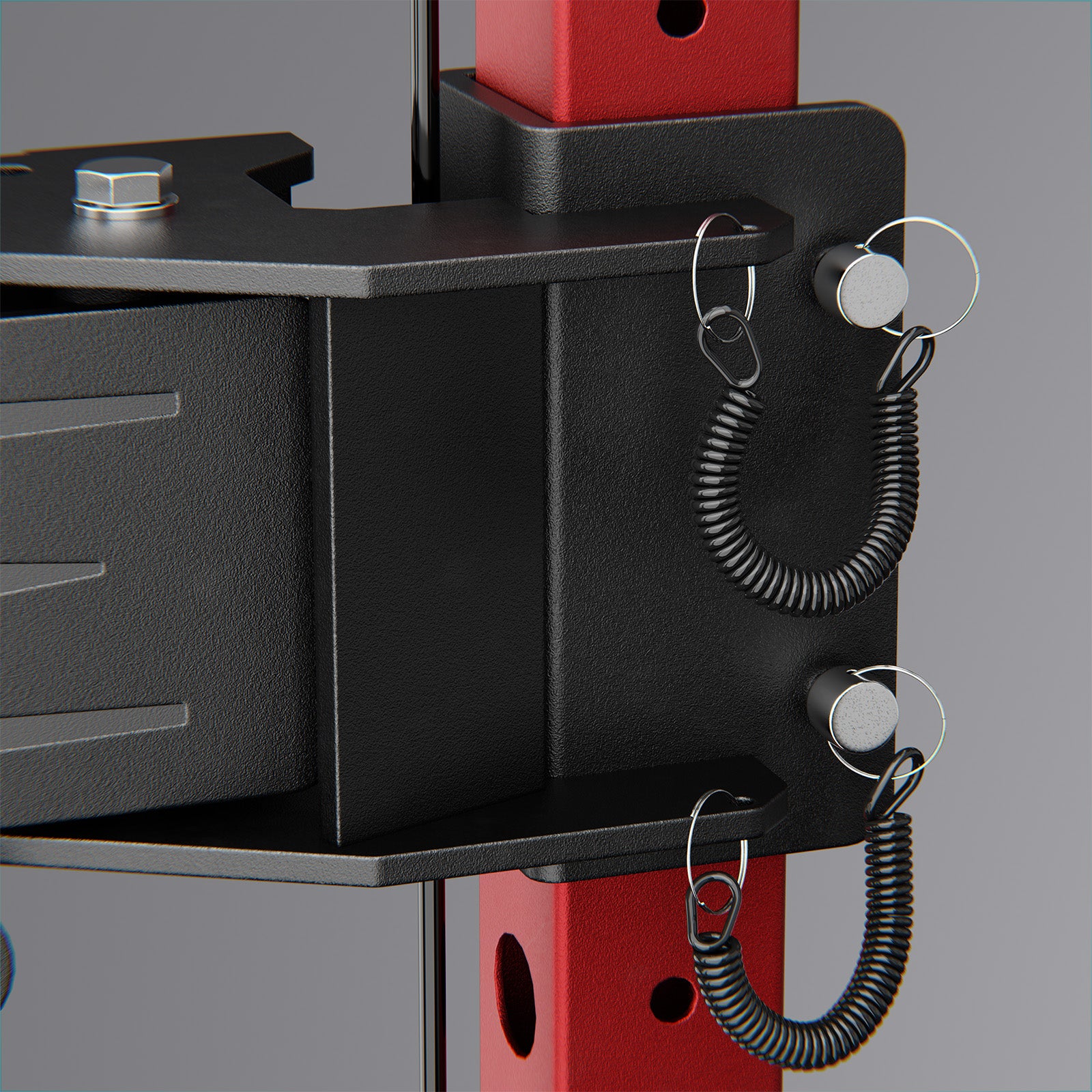

The LAM1 utilizes dual locking pins and a reinforced anti-drop strap to ensure the unit remains firmly anchored and safe throughout your entire workout.
