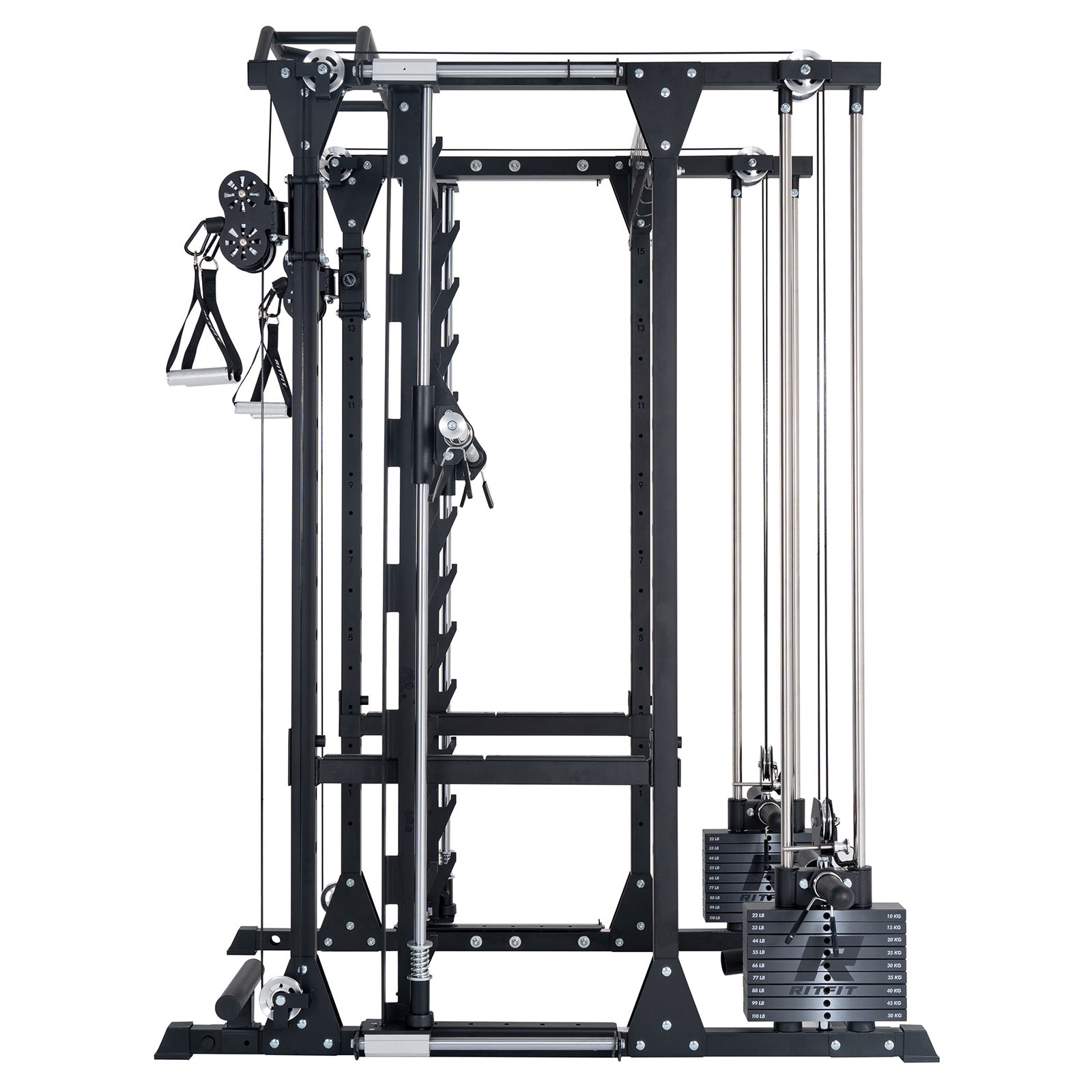

RitFit P9 3D Smith Machine and a Functional Trainer With Adjustable Dual Cable System

Black RitFit P9 Multi-Functional Modular Power Cage With 3D Smith Machine and Adjustable Dual Cable System

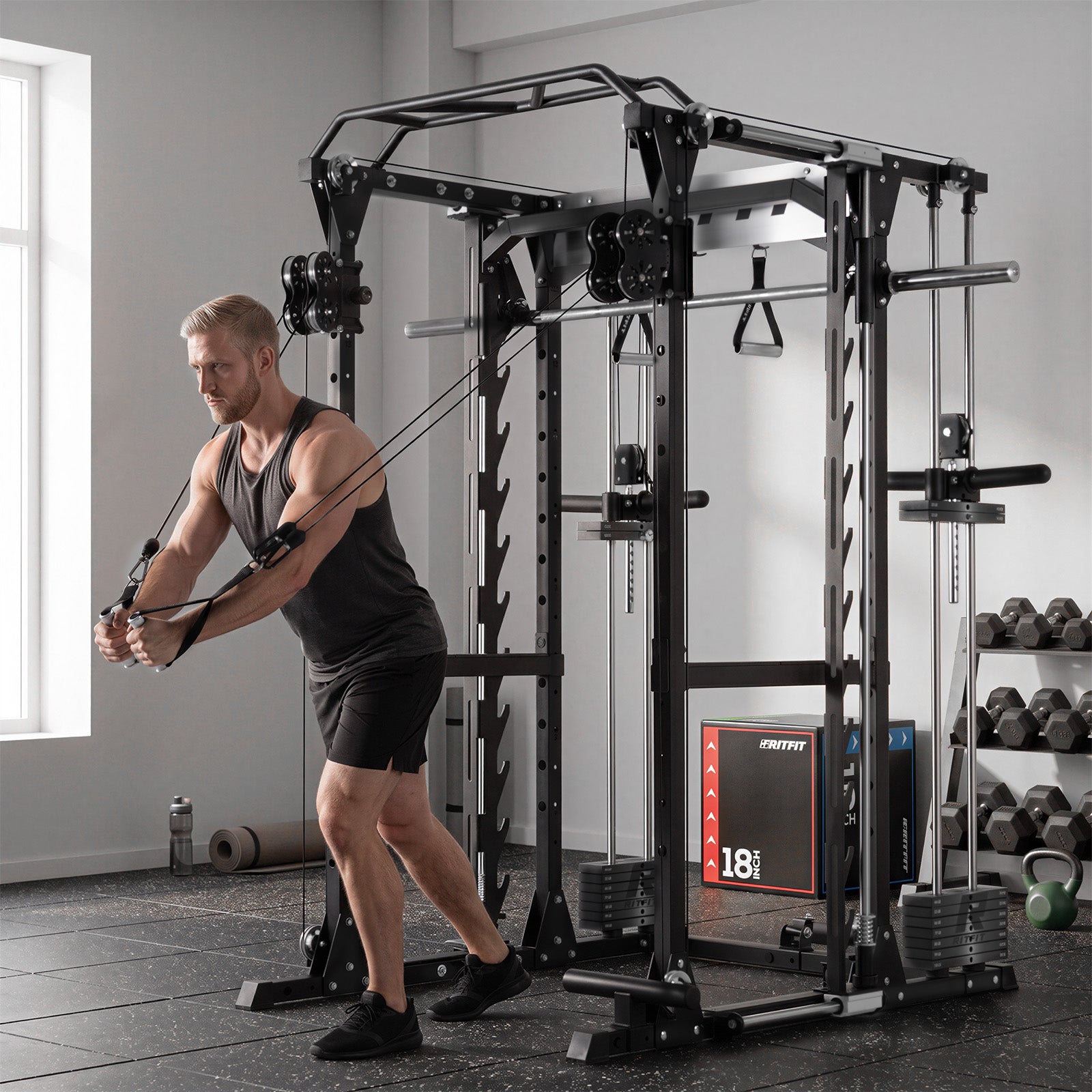

Man using black RitFit P9 Multi-Functional Modular Power Cage with 3D Smith Machine and dual cable system

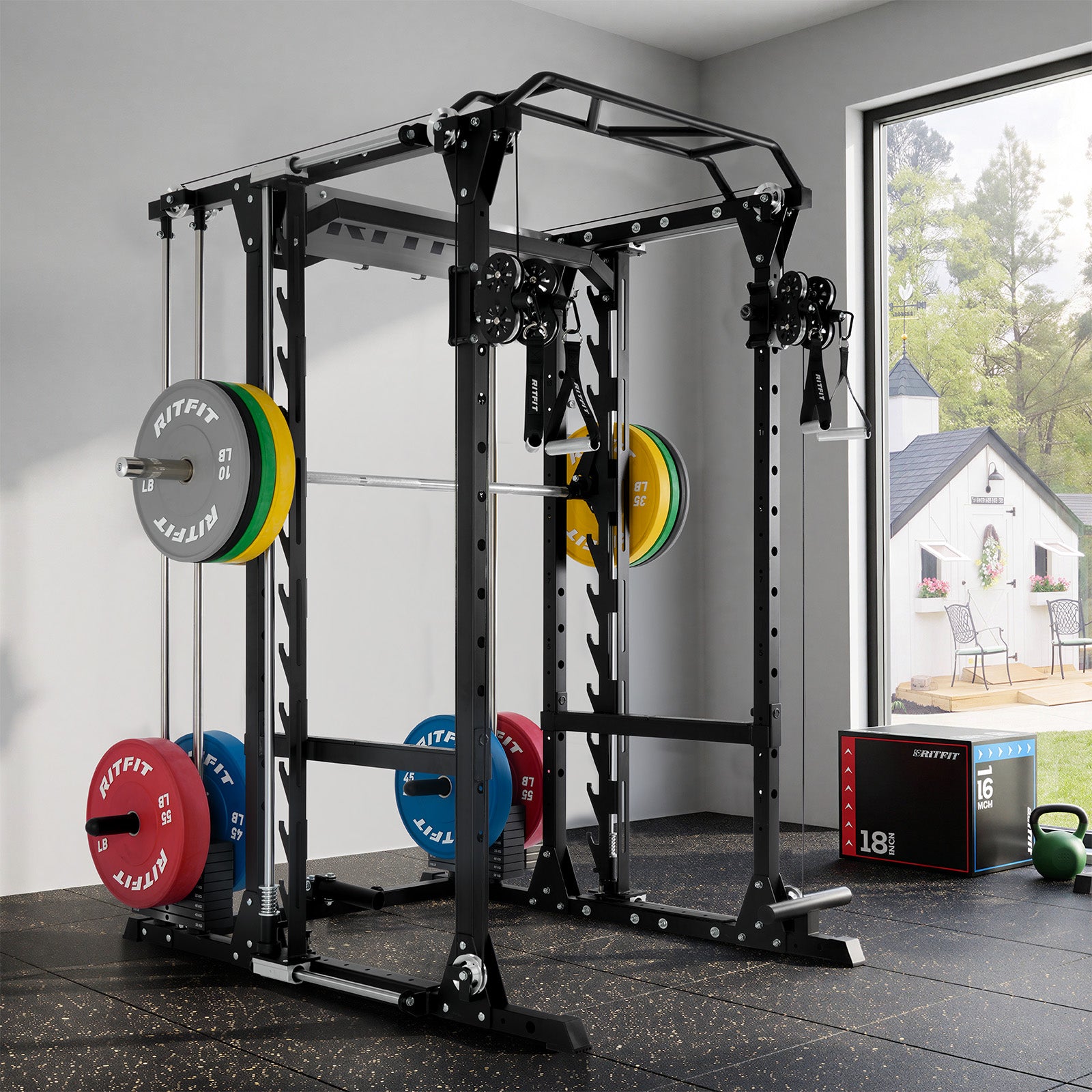

Black RitFit P9 Multi-Functional Modular Power Cage with 3D Smith Machine and colorful weight plates
Black RitFit P9 Multi-Functional Modular Power Cage With 3D Smith Machine and Adjustable Dual Cable System

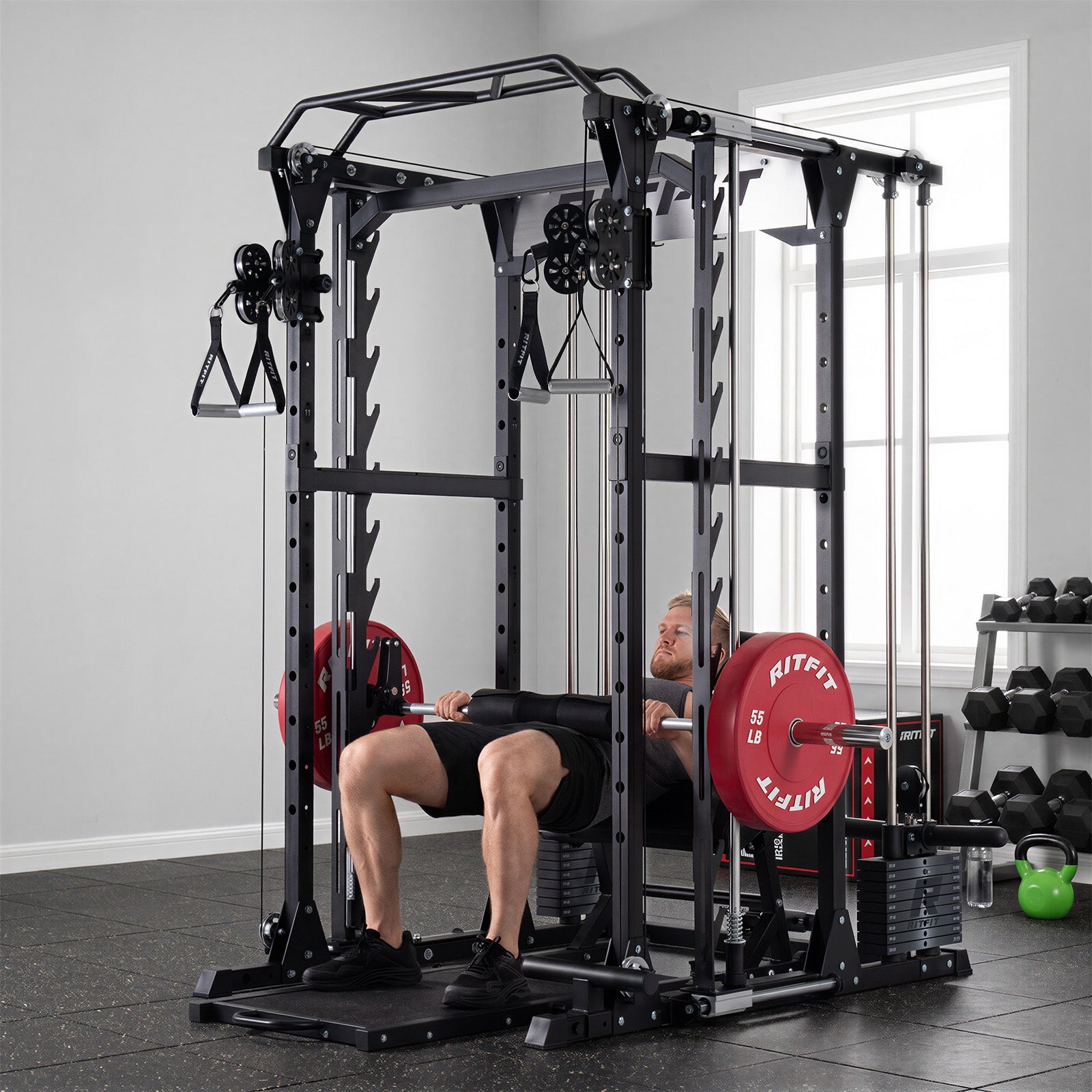

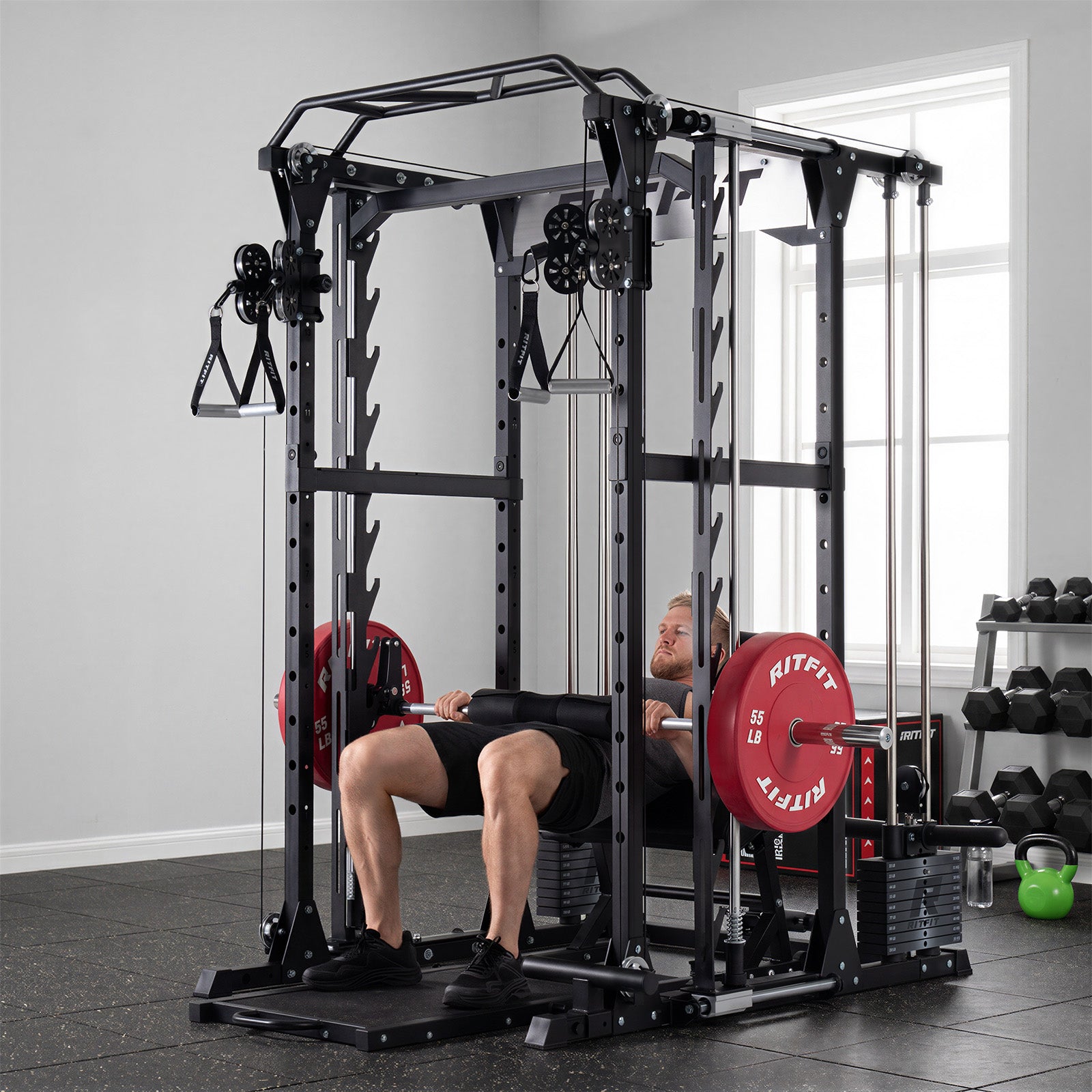

Man performing hip thrust on black RitFit P9 Multi-Functional Modular Power Cage with red weight plates

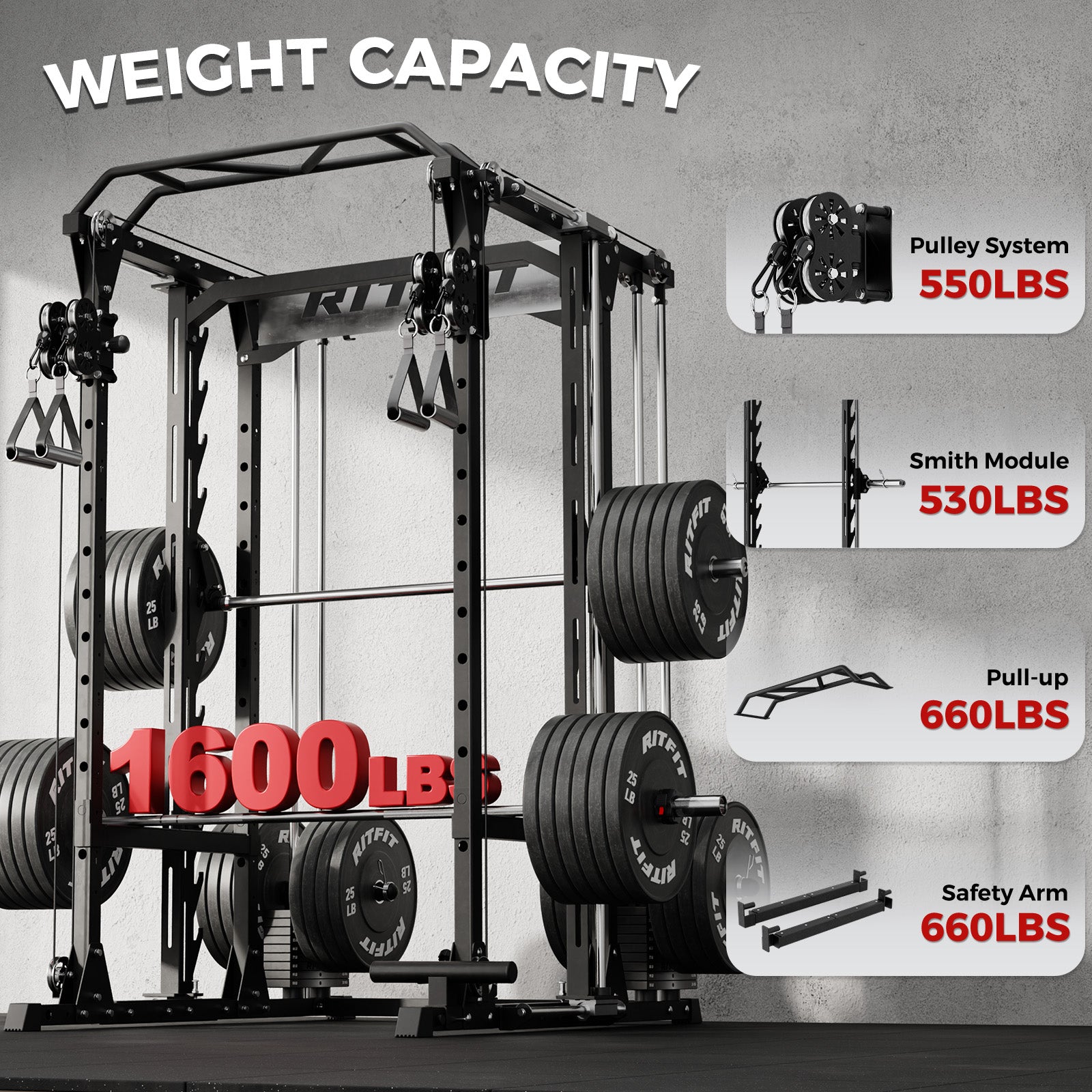

Black RitFit P9 power cage loaded with weight plates showing 1600lbs capacity

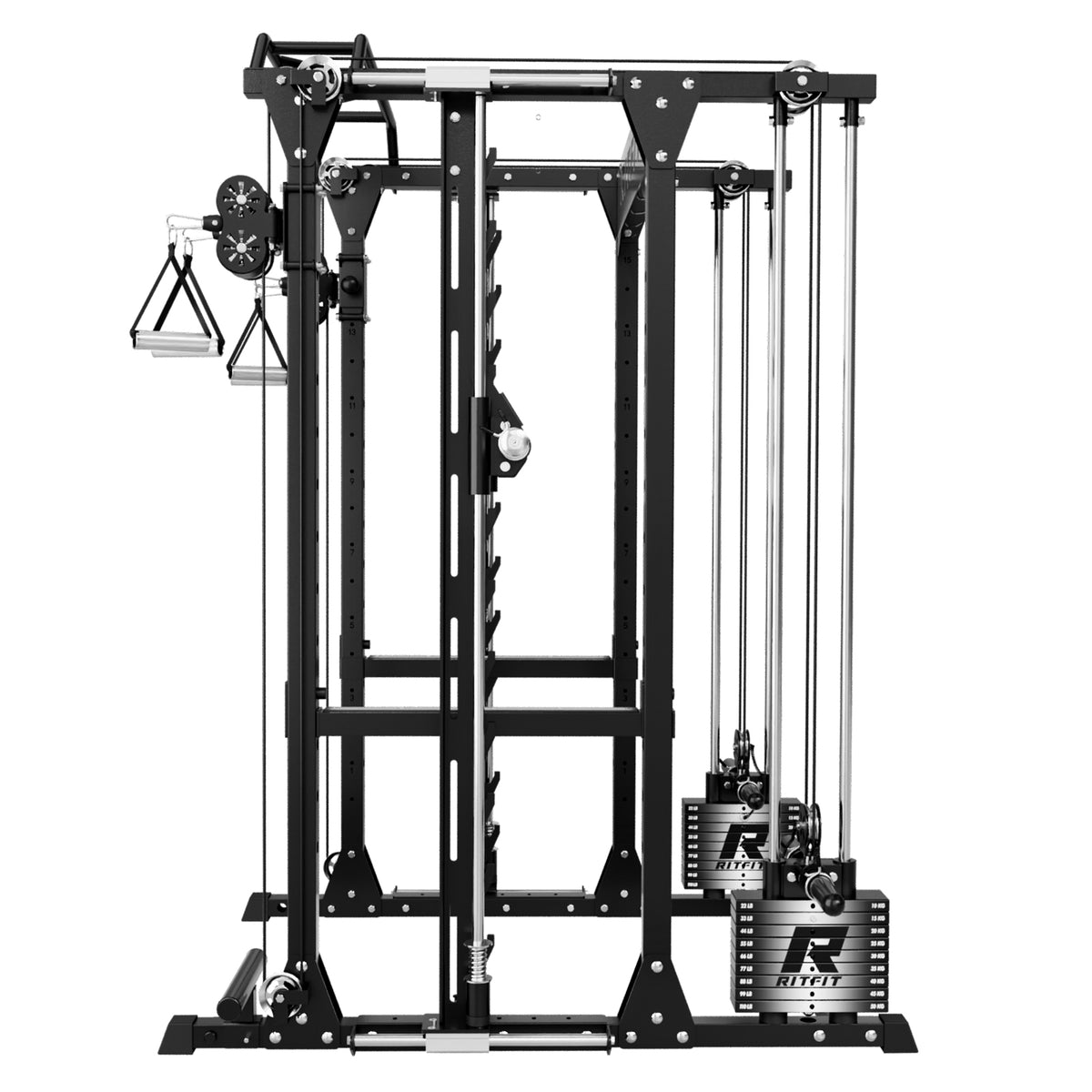

Black RitFit P9 Multi-Functional Modular Power Cage With 3D Smith Machine and Adjustable Dual Cable System

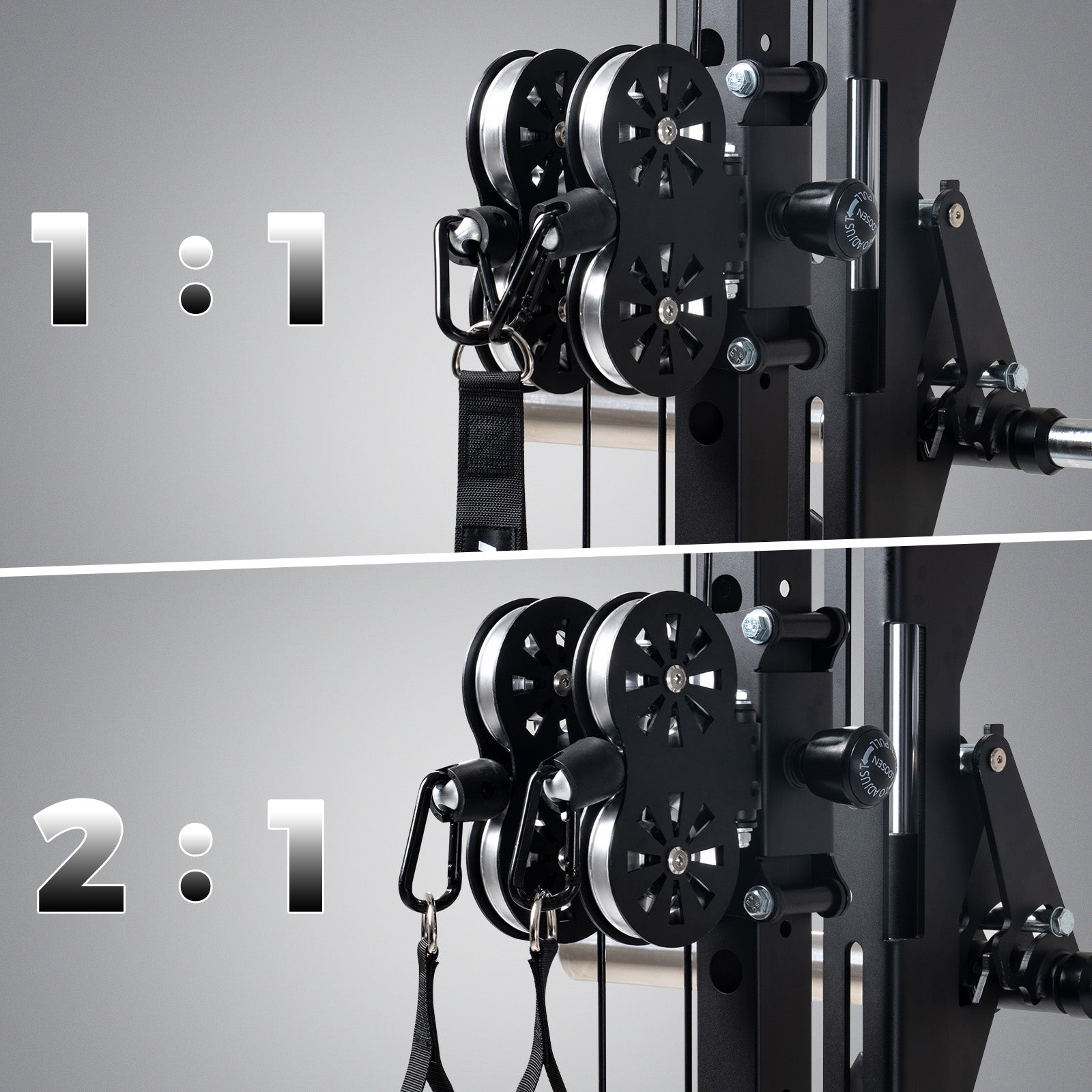

RitFit P9 power cage dual cable system showing 1:1 and 2:1 pulley ratios

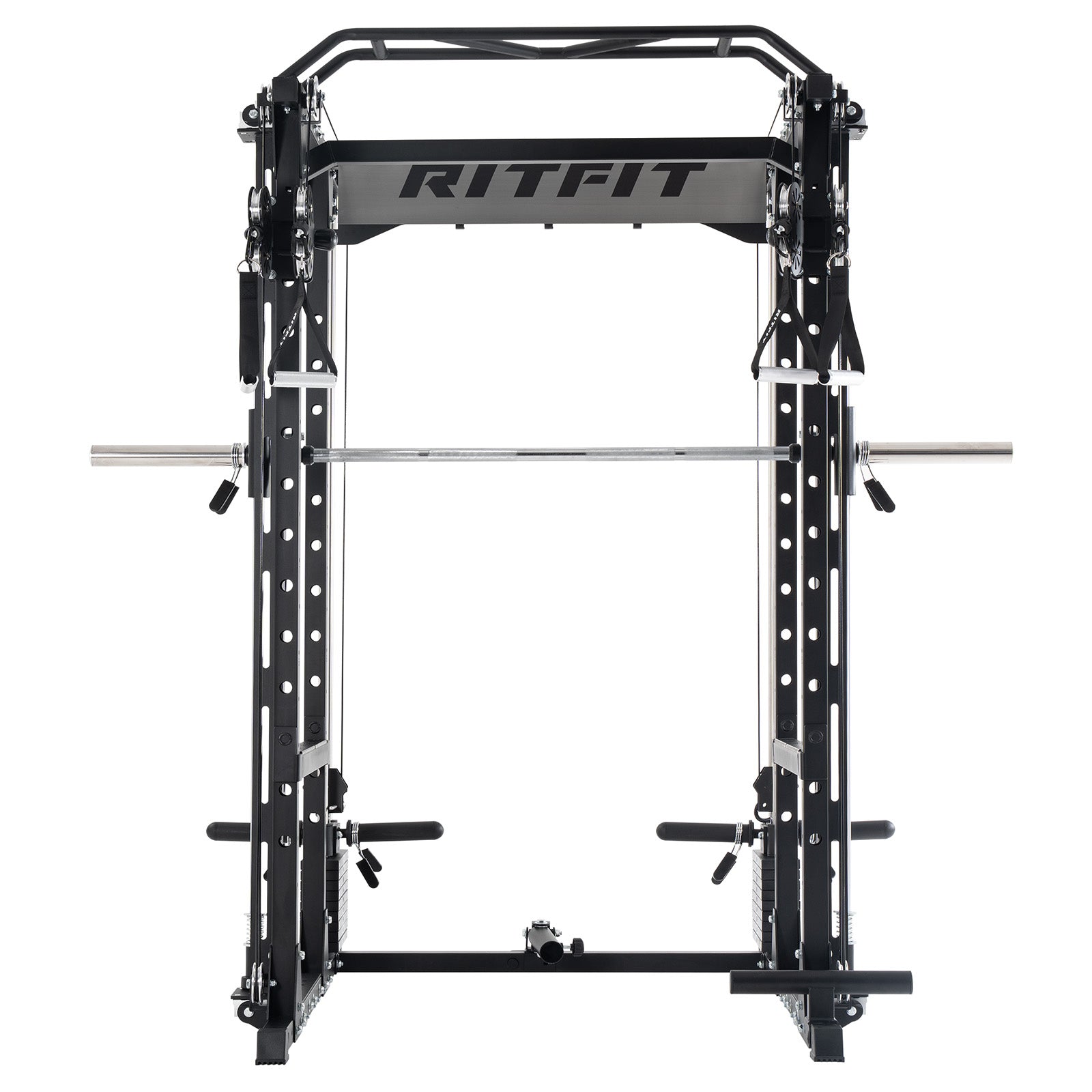

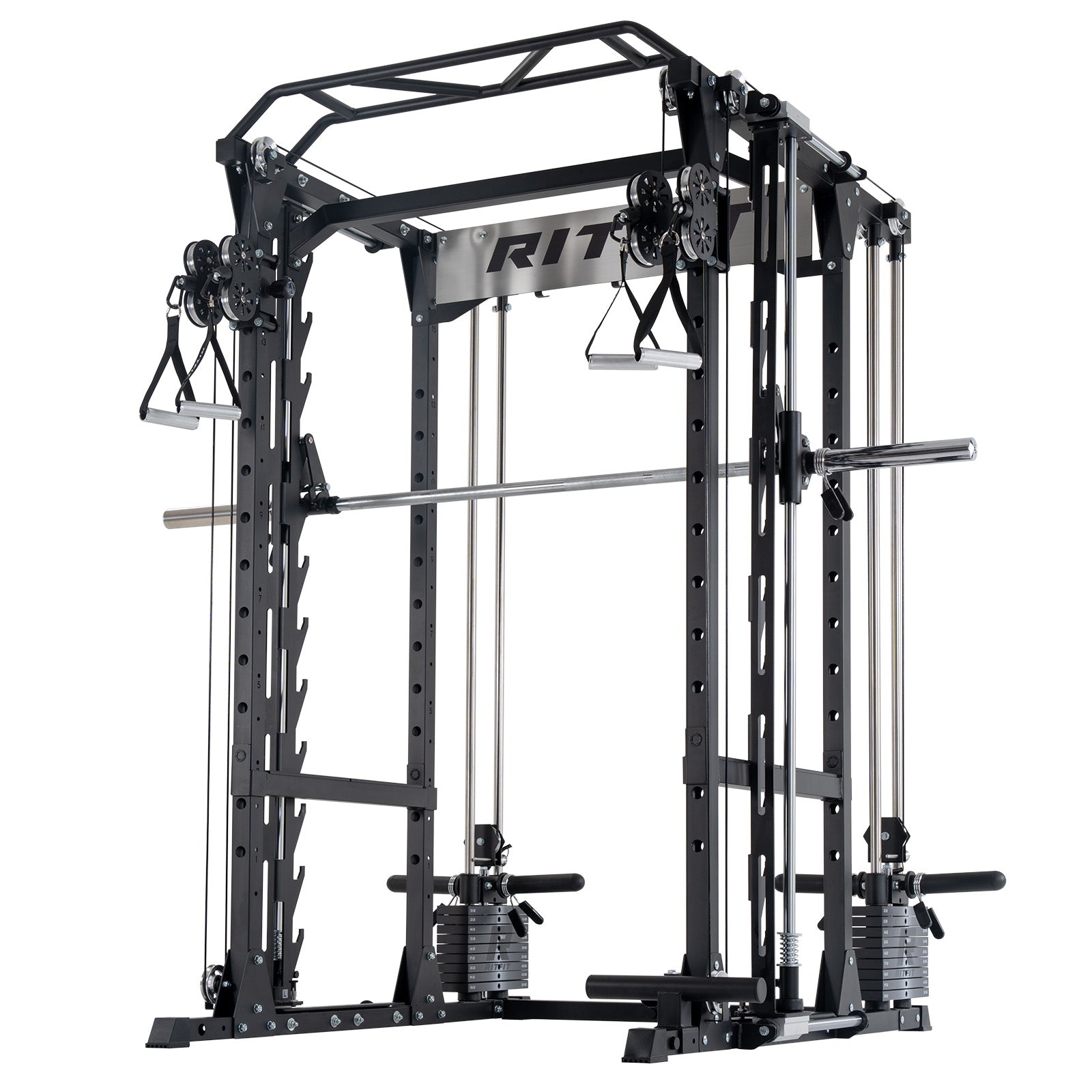

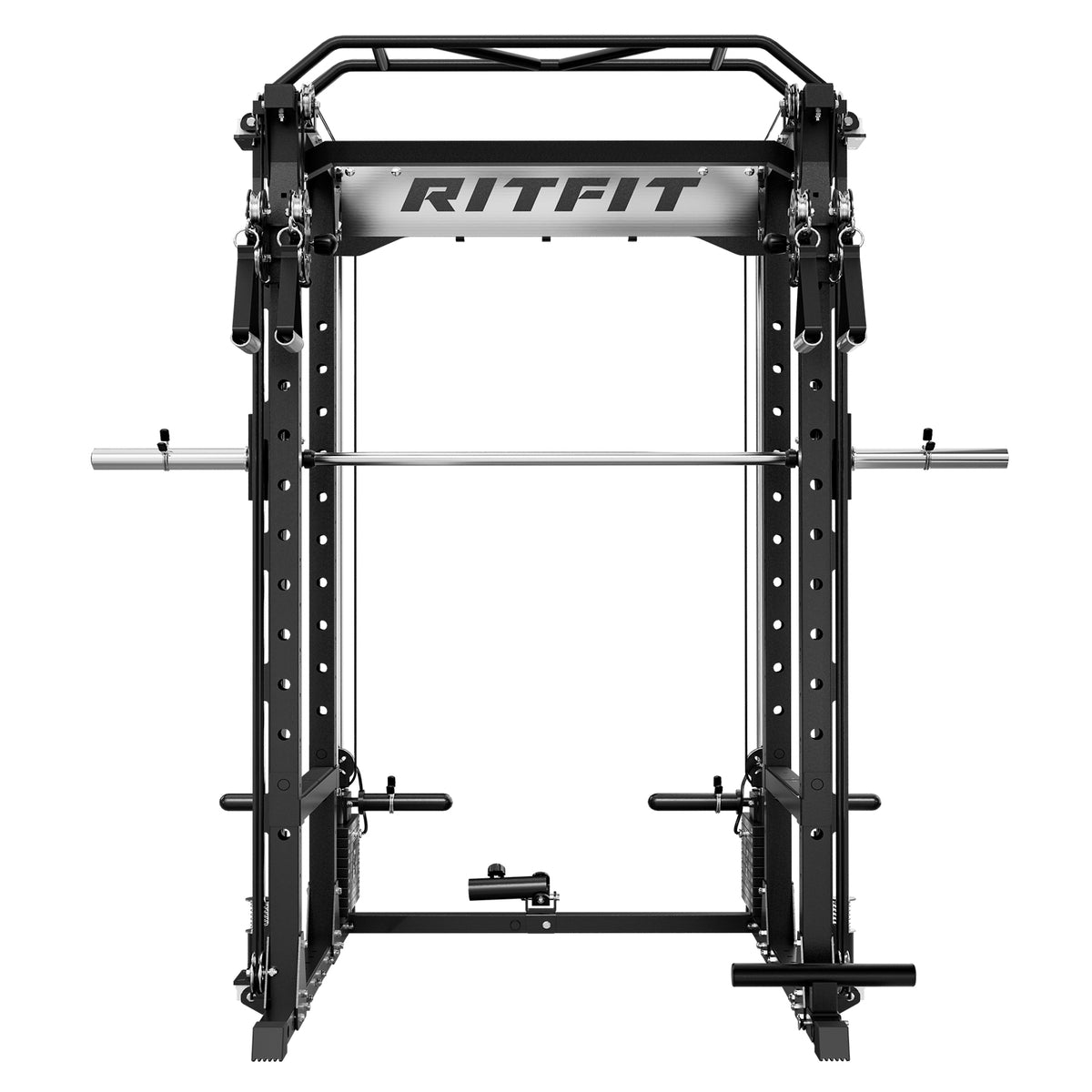

Black RitFit P9 modular power cage with 3D Smith machine and adjustable dual cable system

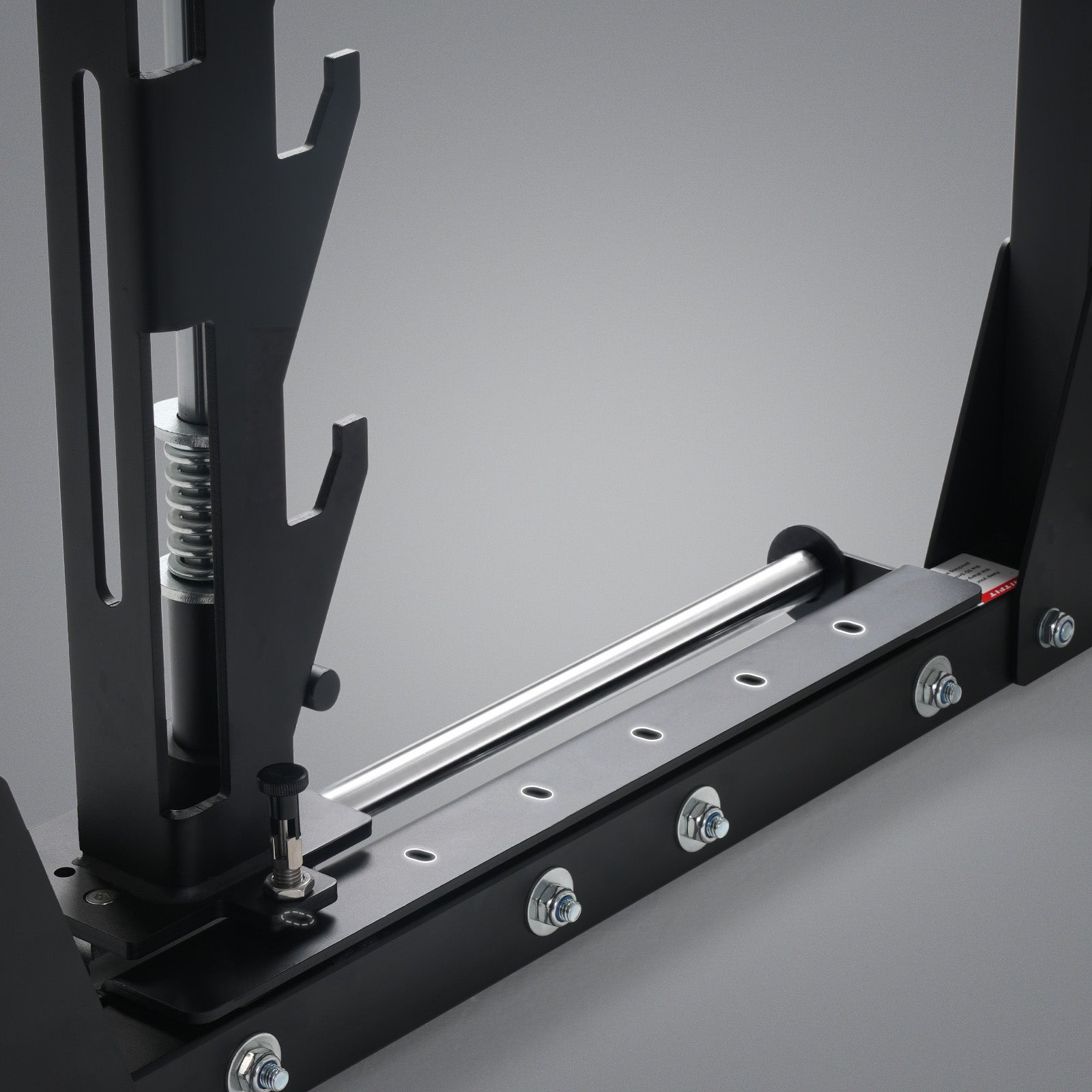

Black RitFit P9 power cage base with silver Smith machine rail and adjustment holes

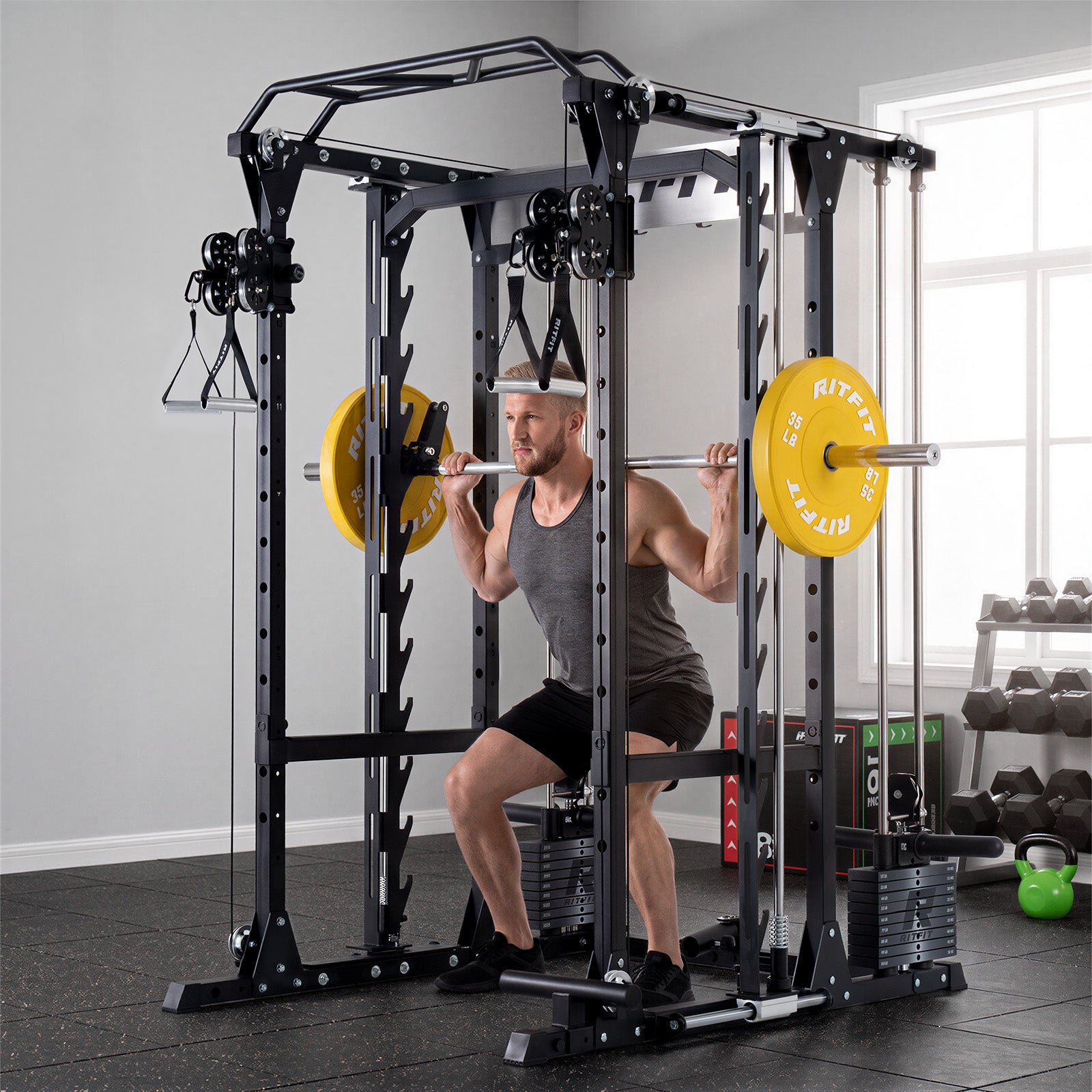

Man squatting with barbell inside black RitFit P9 Multi-Functional Modular Power Cage with 3D Smith Machine

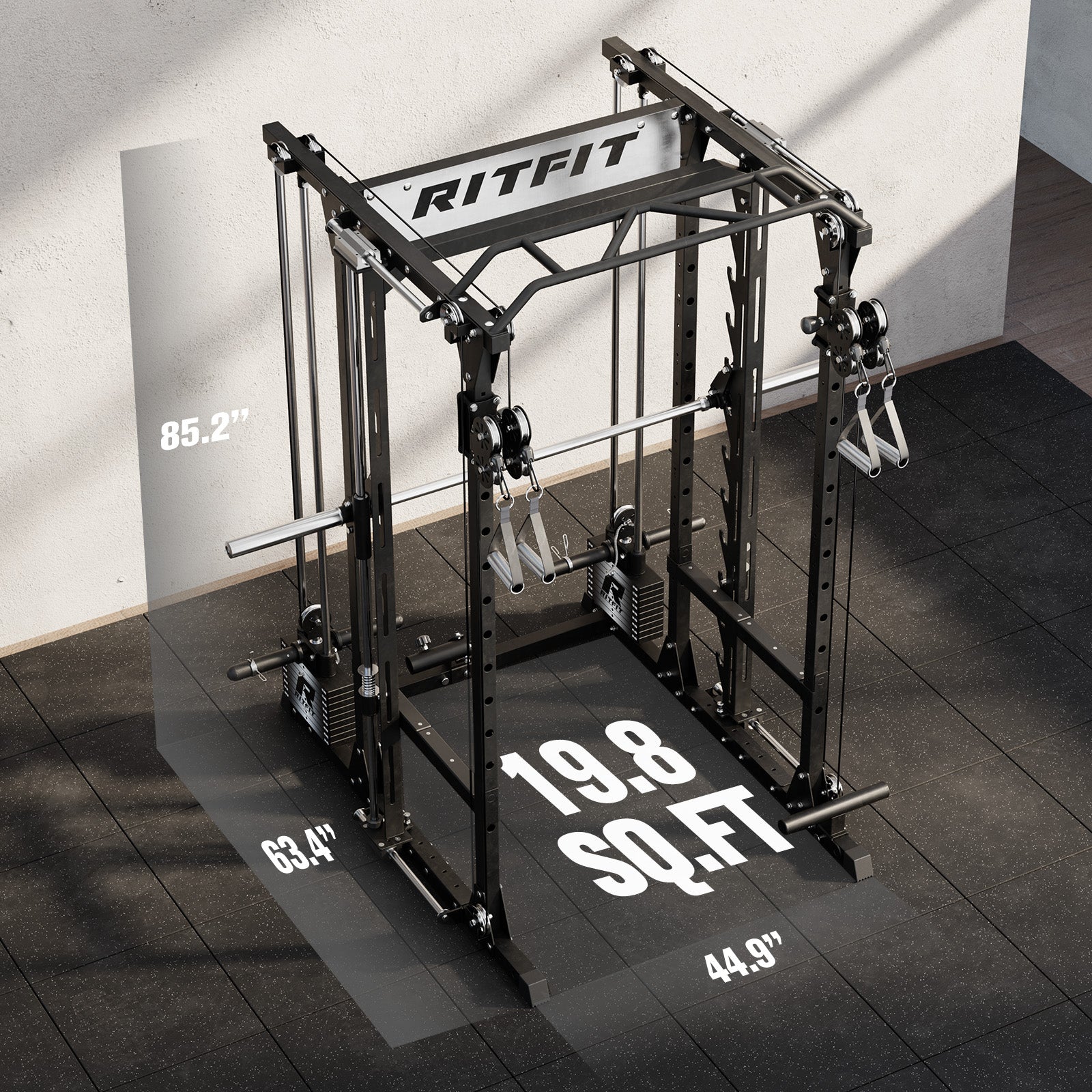

Black RitFit P9 Multi-Functional Modular Power Cage with 3D Smith Machine and dual cable system on rubber floor

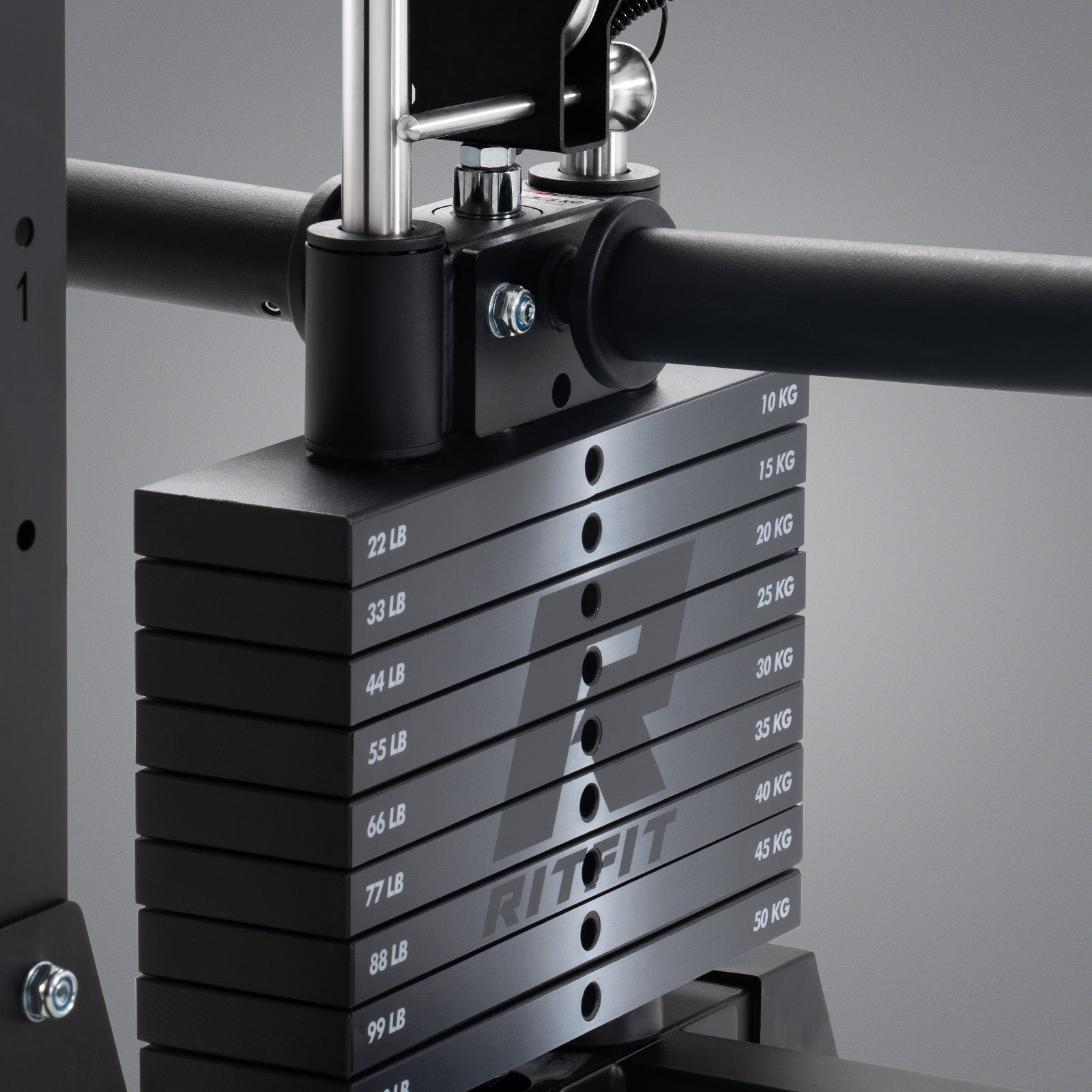

Black weight stack with dual lb and kg markings on RitFit P9 Multi-Functional Modular Power Cage

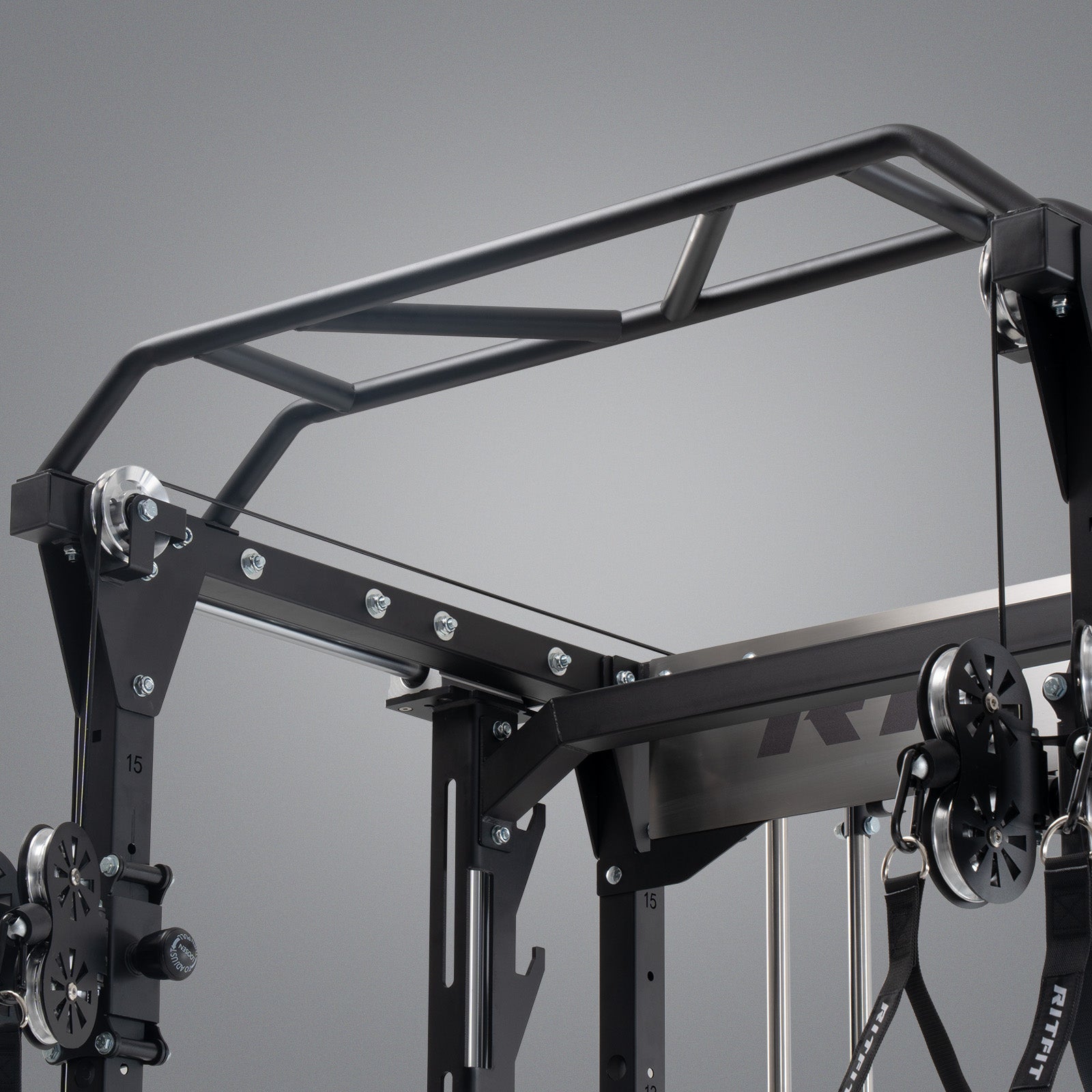

Black RitFit P9 Multi-Functional Modular Power Cage top frame with dual cable pulleys and Smith machine rails
New Arrival

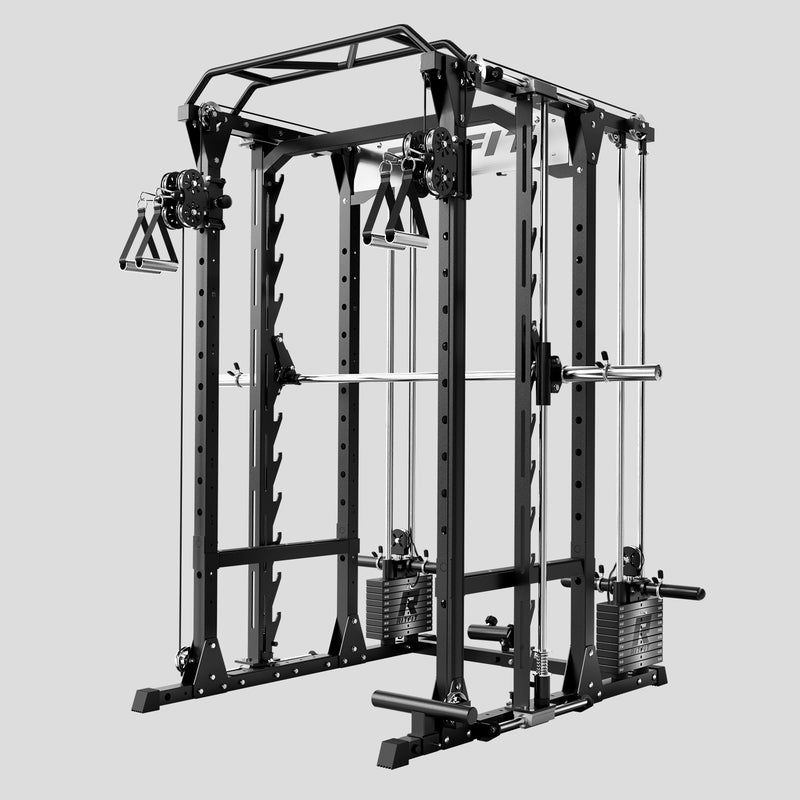

RitFit P9 3D Smith Machine and a Functional Trainer With Adjustable Dual Cable System

Special Offer Buy Now & Enjoy $100 OFF! Auto-applied at checkout
Sale price$1,799.99
🚚 Free Shipping
🛡 Lifetime Support
↩ 35-Days Returns
Ships within 2-3 days
User Manual & Assembly Guide
Complete setup and usage guide with detailed assembly instructions
Download PDF
Product Dimensions

P9 GENERAL INFO

Product Model
RitFit P9 3D Smith Machine with Dual Cable Crossover
Rack Length (Includes Smith Bar)
63.4 in
Rack Width
78.6 in
Rack Height
85.2 in
Foot Print (Soft)
19.8 sq.ft
Rack Weight
623lbs
Rack Material
2" × 2" 14-Gauge Steel




UPRIGHTS & FRAME
Upright Material
50 × 50 × 1.8 mm Steel Uprights (2" × 2" 14-Gauge Steel)
Frame Capacity
1,600 lbs
Upright Hole Size
 1in
Upright Hole Spacing
4.33 in
Number of 1" holes per side
 12
Pull-up Bar Load Capacity
660 lbs


SMITH MACHINE
Smith Capacity
530 lb Static / 265 lb Dynamic
Smith Bar Weight
33 lbs
Basic Smith Machine Adjustable Positions
12 Hook Positions
Horizontal Adjustment Length
20.6 in
Lowest Smith Bar Position
9.0 in
Adjustment Levels 6 Locking Positions (Fixed & Free Modes)


CABLE & PULLEY SYSTEM
Pulley Ratio
2:1 (single cable)
1:1 (dual cable)
Single-Side Pulley Load Capacity
550 lb Static / 330 lb Dynamic
Cable System Rail Material
Hard Chrome-Plated Solid Steel Guide Rods with Linear Bearings
Pulley Material
Commercial-Grade Aluminum
Number of Pulleys
20 Total Pulleys



SAFETY ARMS
Single-side Safety Arm Capacity
660 lb Static / 375 lb Dynamic
Safety Arm Length
26.3 in



 WEIGHT STACKS
Weight Stack
18 Total Weight Plates (9 per side)
Single Weight Plate
11 lb (5 kg)
Total Integrated Weight Stack
198 lb (99 lb per side)
P9

📦 Ships in 7 Boxes

🚚 Free Shipping (U.S. Continental)

⏱️ Ships within 2-3 days.

Box Dimensions (L×W×H) Weight
P9-A 82.1 × 10.2 × 6.3 in 101.1 lb
P9-B 81.1 × 10.2 × 6.9 in 98.1 lb
P9-C 68.1 × 12.6 × 6.5 in 99.3 lb
P9-D 49.0 × 15.7 × 6.3 in 91.6 lb
P9-E 34.1 × 13.4 × 7.3 in 73.1 lb
P9-F 14.2 × 9.3 × 6.3 in 100.5 lb
P9-G 14.2 × 9.3 × 6.3 in 100.5 lb
It combines a 3D Smith machine, a dual cable crossover, a power cage, a pull-up bar, and a landmine post in one frame, so you can train nearly every muscle group in one spot.
The frame takes up 19.8 square feet, measures about 63 inches deep by 79 inches wide, and stands 85 inches tall. Check your ceiling height before you order.
The suggested user height is 145 to 195 cm, about 57 to 77 inches, which fits most teens and adults in a household.
The Smith bar moves vertically and horizontally with about 52.5 cm of forward and back travel, so it follows a natural path. Six index positions switch it between guided and free lifting.
Yes. The dual cable crossover has two independent trolleys, so two people can use the cables at the same time, or one person can work each side on its own.
Yes. Each side switches between a 1:1 and 1:2 ratio and sets to 15 height positions, so you can match the load to presses, rows, flys, or pulldowns.
The frame carries a 1,600 lb total rating. The pull-up bar holds 660 lb, each safety arm holds 660 lb, the Smith module holds 530 lb, and each cable side holds 550 lb, all static ratings.
Yes. The Smith bar locks at six index positions and rides on a solid hard-chrome rail with linear bearings, and the 660 lb safety bars catch a missed rep so you can lift without a spotter.
The uprights are 2 by 2 inch, 14-gauge steel spaced 40.6 inches apart for a stable cage.
It ships in 7 boxes.
Keep the guide rail and pulleys clean and lightly lubricated so the Smith bar and cables stay smooth over time.
RitFit covers power cages with 3 years on the frame, 1 year on parts, and 90 days on the cover and upholstery.
RitFit handles warranty claims and replacement parts directly. Reach the support team by email at support@ritfitsports.com.

Compare

Swipe to compare →
M1 Pro
(No Stack) 		NEW P9
（With Stack） 		M1 Pro
(With Stack) 		M2 3D M2 Pro M2 Pro 3D
Product M1 Pro (No Stack) RitFit P9 Multi-Functional Modular Power Cage M1 Pro (With Stack) M2 3D M2 Pro M2 Pro 3D
Price $1,299.99 $1,999.99 $2,199.99 $2,199.99 $2,799.99 $3,099.99
Smith Machine Type Basic Smith 3D Smith
Fixed / Free Switching 		Basic Smith 3D Smith Basic Smith 3D Smith
Pulley Ratio 2:1 1:1 / 2:1 2:1 2:1 2:1 2:1
Built-in Weight Stack — 198 lb 264 lb — 286 lb 286 lb
Rack Material 2" × 2" 14-Gauge Steel 2" × 2" 14-Gauge Steel 2" × 2" 14-Gauge Steel 2.36" × 2.36" 13-Gauge Steel 2.36" × 2.36" 13-Gauge Steel 2.36" × 2.36" 13-Gauge Steel
Frame Capacity 1,600 lb 1,600 lb 1,600 lb 2,000 lb 2,000 lb 2,000 lb
Rack Height 85.3" 85.2" 85.3" 86.14" 86.14" 86.14"
Footprint 20.9 sqft 19.8 sqft 20.9 sqft 22.8 sqft 22.8 sqft 22.8 sqft
Cable Adjustment Positions 15 29 15 16 16 16
Smith Adjustment Positions 11 12 11 10 11 10
Pull-Up Bar Capacity 465 lb 660 lb 465 lb 465 lb 465 lb 465 lb
Safety Arm Capacity 575 lb 660 lb 575 lb 660 lb 660 lb 660 lb
Suggested User Height Up to ~6'6" Up to ~6'6" Up to ~6'6" — — —
Enlarged product image

Customer Reviews

Overall rating: 4.8 / 5 from 4 reviews.

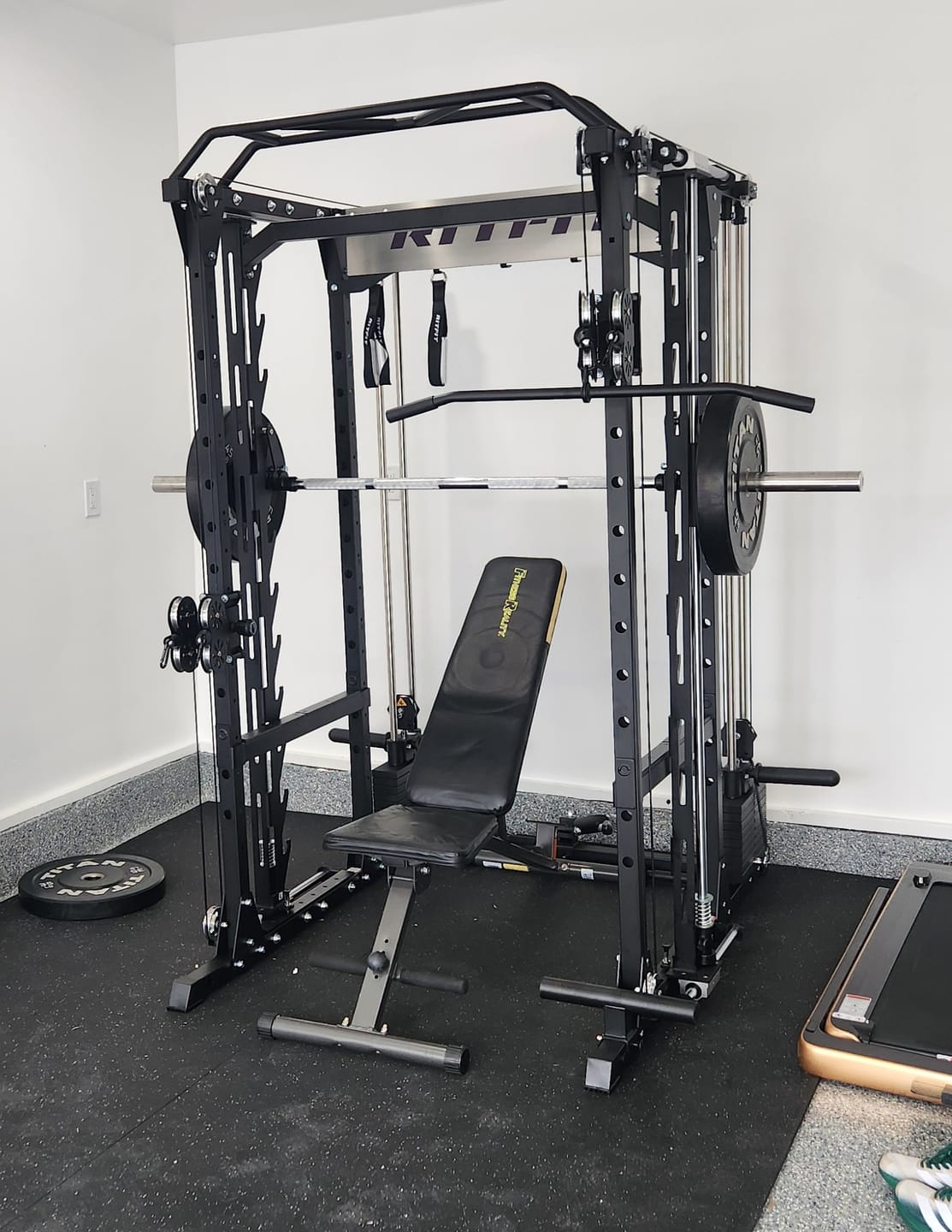

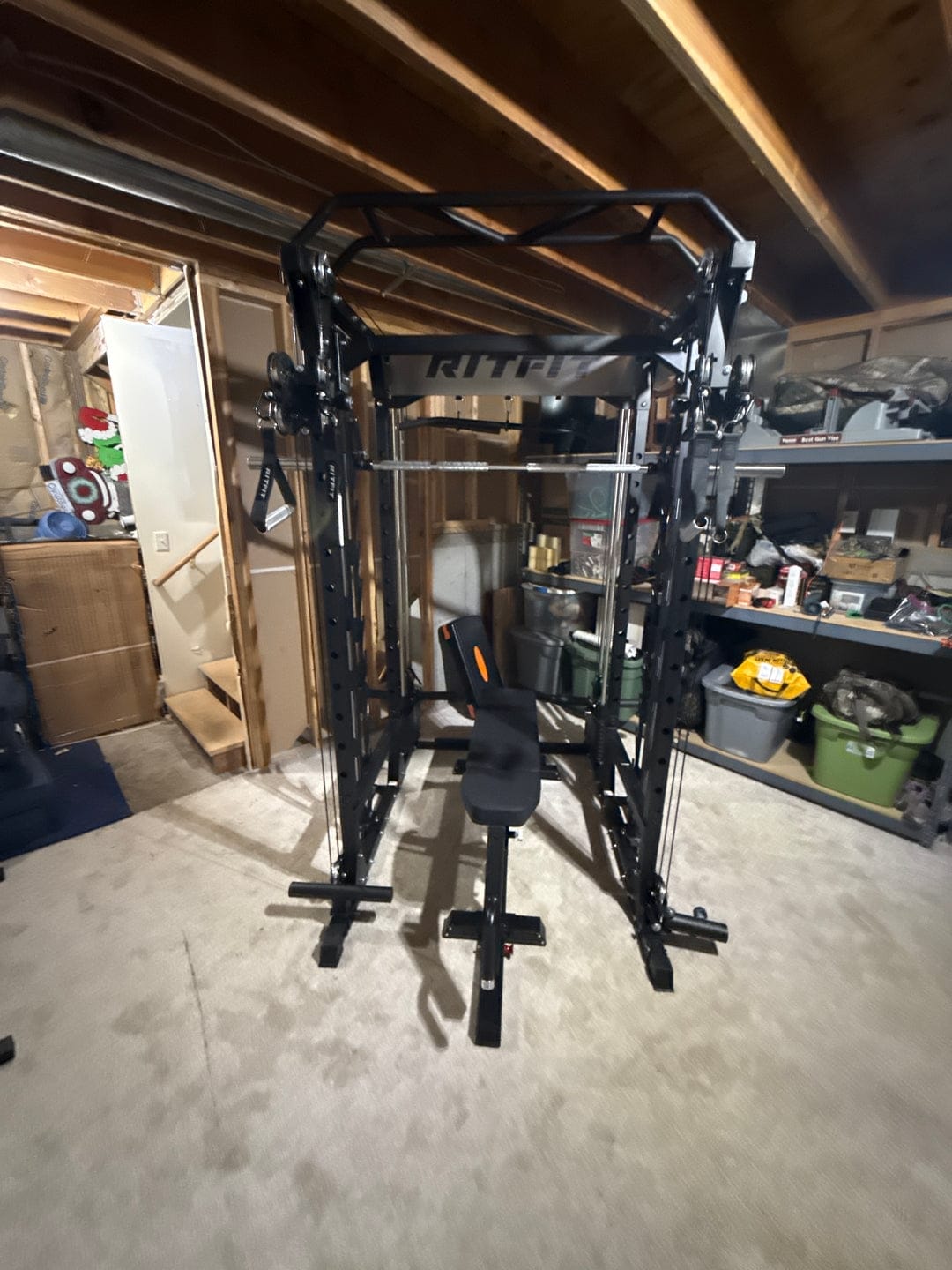

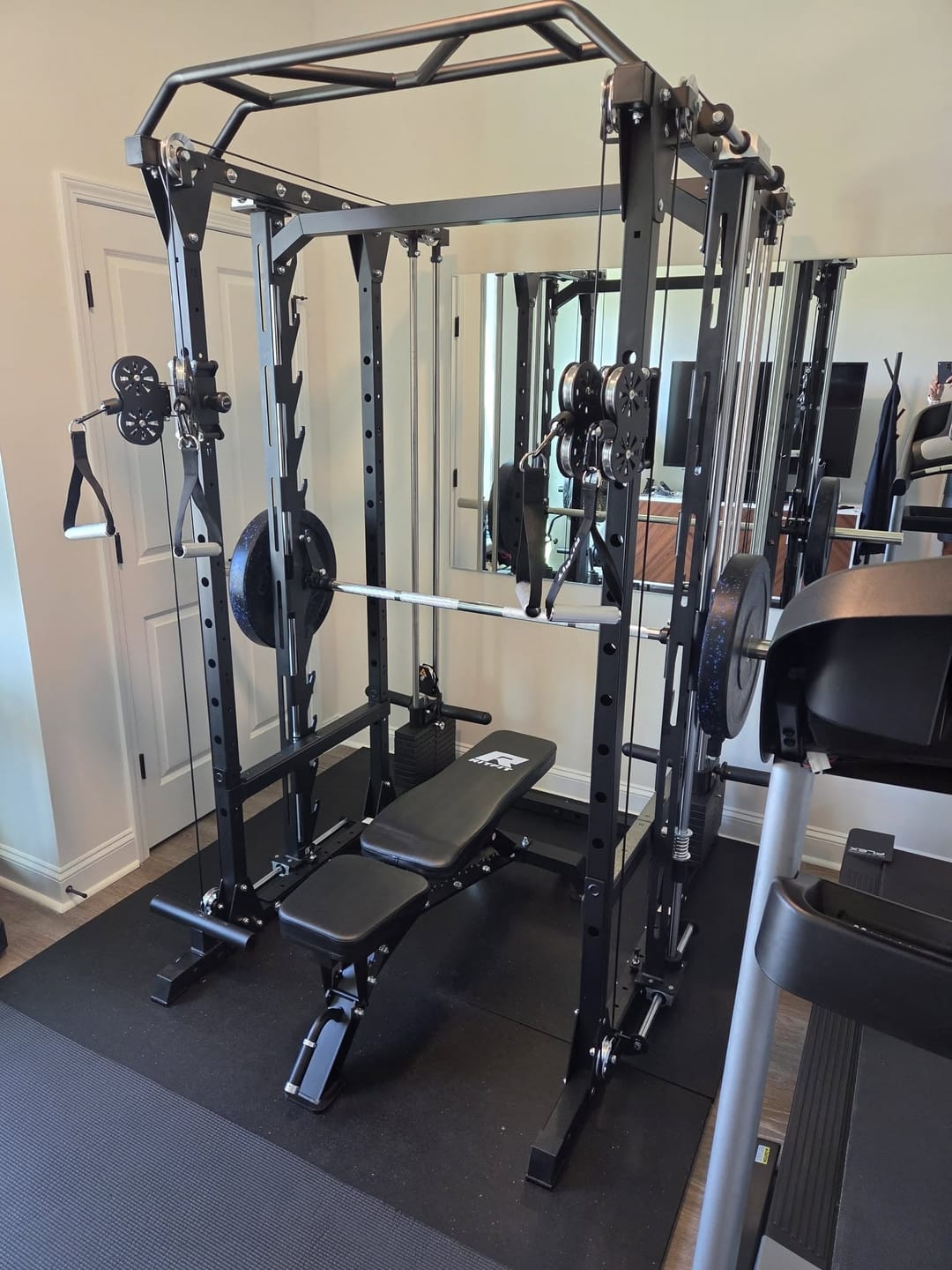

Customer photo review of RitFit P9 Multi-Functional Modular Power Cage With 3D Smith Machine and Adjustable Dual Cable System
